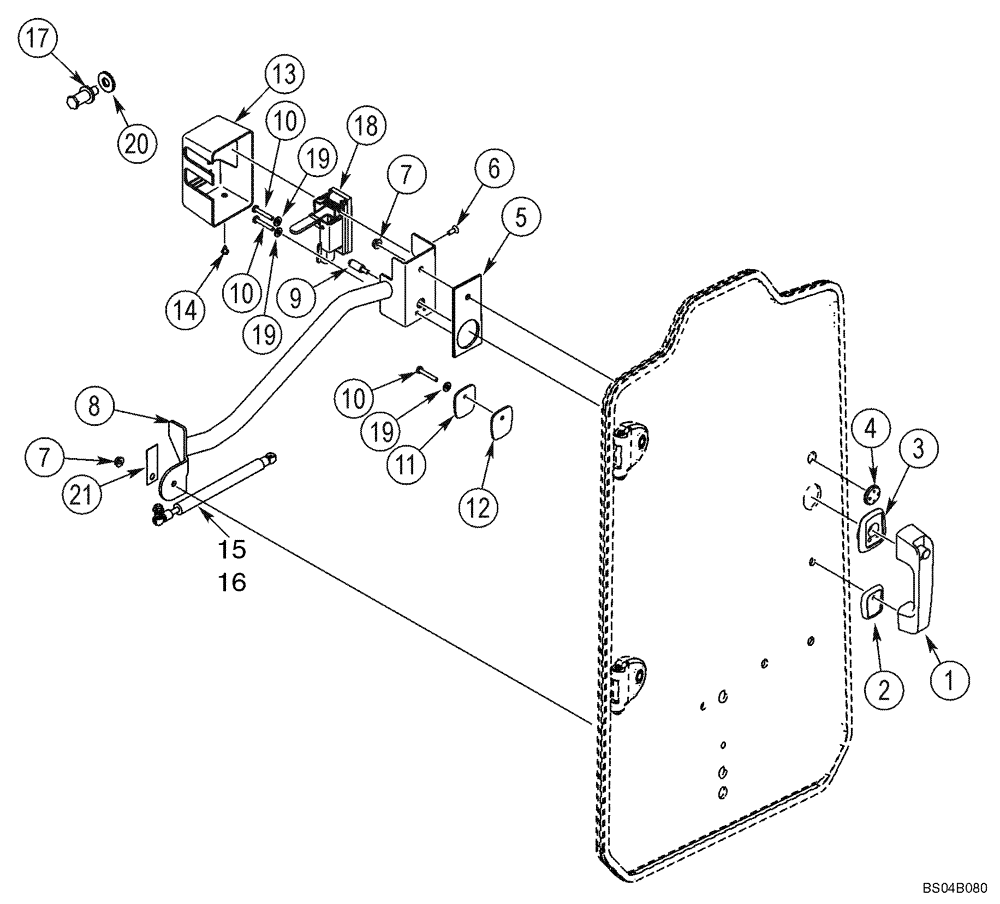

Запчасти Case IH 435 (09-28B) - DOOR, FRONT, ALL GLASS - LATCH (09) - CHASSIS

1

9707331

HANDLE

Cab Door

1шт.

2

321552A1

BEZEL

1шт.

3

321551A1

BEZEL

1шт.

4

198916A2

CAP,M8 x 20, Black

Models With Glass Door

1шт.

4

441365A1

CAP

Models With Lexan Door

1шт.

5

383465A3

SPACER

Replaces 383465A2

1шт.

6

569-4

SCREW,Hex Soc Flat Hd, M6 x 20, 8.8

4шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

430668A2

BRACKET

1шт.

9

383819A1

BUTTON

Door Latch

1шт.

10

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

Models With Lexan Door

3шт.

10

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

Models W/Glass Door

3шт.

11

391848A1

BACK PLATE

1шт.

12

391847A1

SEAL,57mm L

1шт.

13

396711A2

COVER

Door Lock

1шт.

14

87035391

SELF-TAP SCREW,Pan Hd, M4.8 x 38

1шт.

15

395264A2

GAS STRUT

155 strk; Door Assist

1шт.

16

254307A1

CLIP

Used With Ref 15; Not Illustrated Separately

2шт.

17

198575A1

BOLT

1шт.

18

382777A1

LATCH

1шт.

19

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Models With Glass Door

3шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

21

A37179

CLIP

Harness Support

1шт.
