Запчасти Case IH 435 (09-21) - SEAT - SUSPENSION (09) - CHASSIS

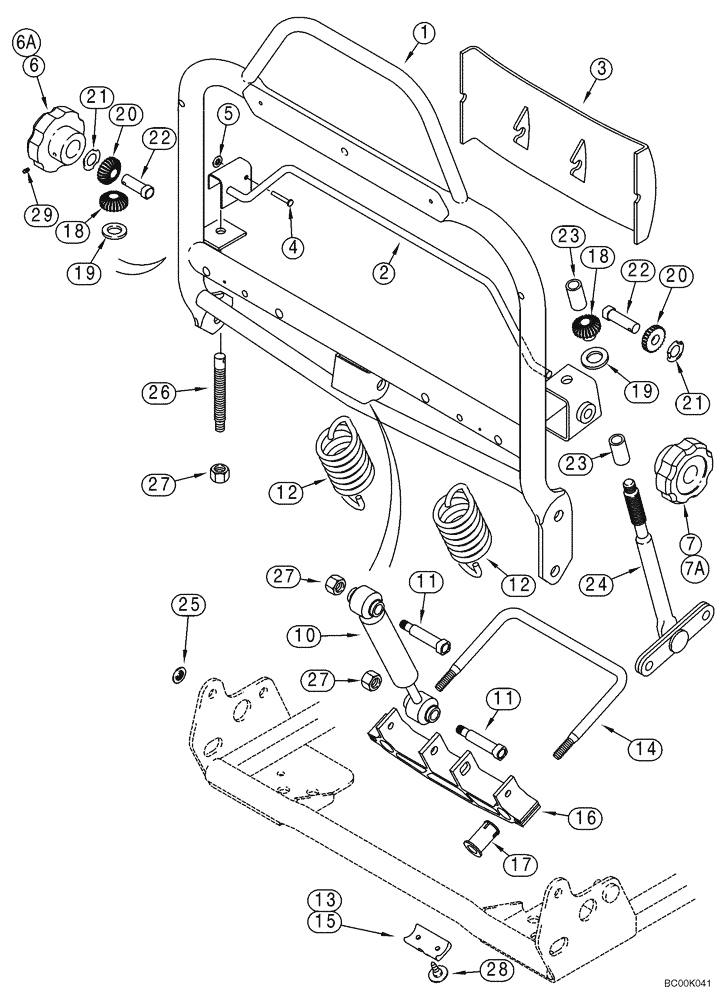

Схема запчастей Case IH 435 - (09-21) - SEAT - SUSPENSION (09) - CHASSIS
25
19
21
13
28
26
22
18
24
20
18
7a
16
23
19
14
7
27
12
11
6
20
27
6a
22
10
11
1
15
5
4
29
2
17
23
12
27
21
3

Артикул

Название

Примечание

Количество

400681A1

SEAT

Incl. 1 - 29; See Figure 09-19 - 09-22

1шт.

1

NSS

NOT SOLD SEPARAT

Frame; Backrest

1шт.

291765A1

ASSEMBLY

Lumbar; Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Crank

1шт.

3

NSS

NOT SOLD SEPARAT

Support; Lumbar

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

291756A1

ASSEMBLY

Incl. Ref 6 and 291767A1, or Ref 7 and 291767A1; Order One Kit Per Side

1шт.

6

NSS

NOT SOLD SEPARAT

Knob; Lumbar Adjustment; Retained By Flange Nut

1шт.

6a

361107A1

KIT

Lumbar Knob; Retained By 1/4-20 NC Set Screw

1шт.

7

NSS

NOT SOLD SEPARAT

Knob; Recliner; Retained By Flange Nut

1шт.

7a

361106A1

KIT

Recliner Knob; Retained By 1/4-20 NC Set Screw

1шт.

291767A1

ASSEMBLY

Emblem; Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Emblem; Lumbar; Not Illustrated

1шт.

9

NSS

NOT SOLD SEPARAT

Emblem; Recliner; Not Illustrated

1шт.

291748A1

ASSEMBLY

Incl. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Damper

1шт.

11

NSS

NOT SOLD SEPARAT

Pin

2шт.

291749A1

ASSEMBLY

Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Spring

2шт.

13

NSS

NOT SOLD SEPARAT

Bushing; Spring Arm

2шт.

REF

INSTRUCTION

Seat

1шт.

291761A1

ASSEMBLY

Incl. 13, 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Arm; Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Bushing; Spring Arm

2шт.

16

NSS

NOT SOLD SEPARAT

Saddle

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing; Saddle

2шт.

291754A1

ASSEMBLY

Incl. 18 - 23

2шт.

18

NSS

NOT SOLD SEPARAT

Nut

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Thrust

1шт.

20

NSS

NOT SOLD SEPARAT

Gear, Bevel

1шт.

21

NSS

NOT SOLD SEPARAT

Washer, Spring

1шт.

22

NSS

NOT SOLD SEPARAT

Shaft

1шт.

23

NSS

NOT SOLD SEPARAT

Bushing; If Equipped

2шт.

291766A1

ASSEMBLY

Incl. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Screw Assy

1шт.

25

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

26

291771A1

ADJUSTMENT SCREW

1шт.

27

NSS

NOT SOLD SEPARAT

Nut

3шт.

28

NSS

NOT SOLD SEPARAT

Bolt, Special

4шт.

29

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

Выбрано товаров: 41
