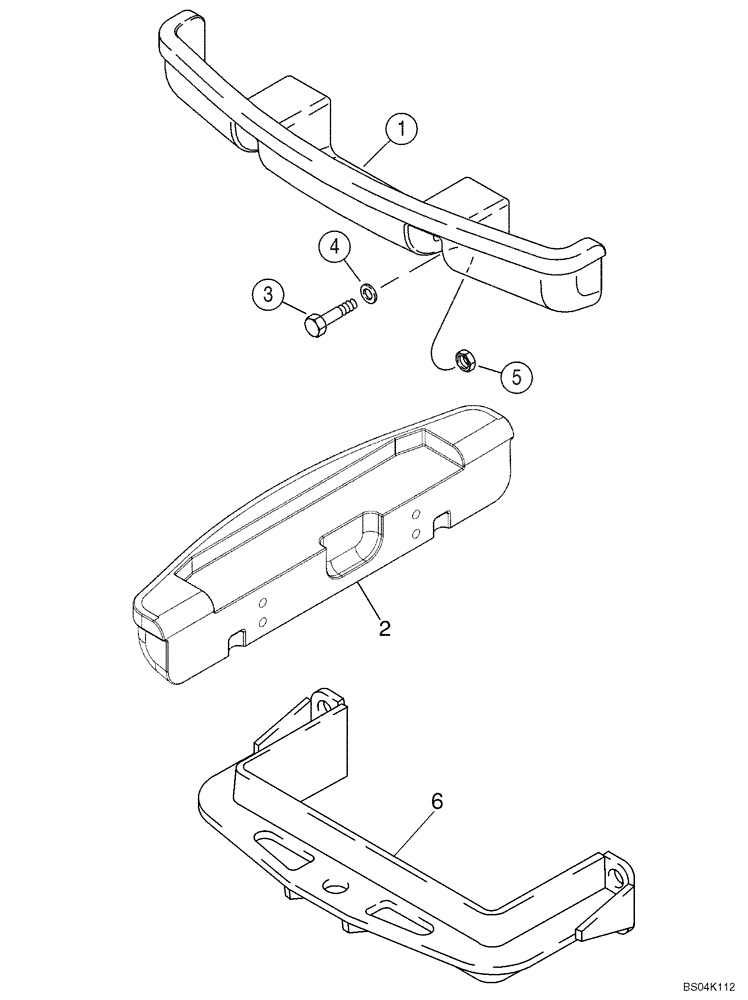

Запчасти Case IH 435 (09-17) - COUNTERWEIGHTS (09) - CHASSIS

1

87442202

BUMPER

150 lbs.; Bumper, Rear

1шт.

2

87457671

BUMPER

380 lbs.; Bumper, Rear; If Used

1шт.

3

87460831

BOLT

M20 x 70; 10.9

4шт.

3

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

Replaces 87445534

4шт.

4

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

If Used

4шт.

5

86536985

NUT,M20 x 2.5, Cl 10

If Used

4шт.

6

258483A1

DRAWBAR

1шт.
