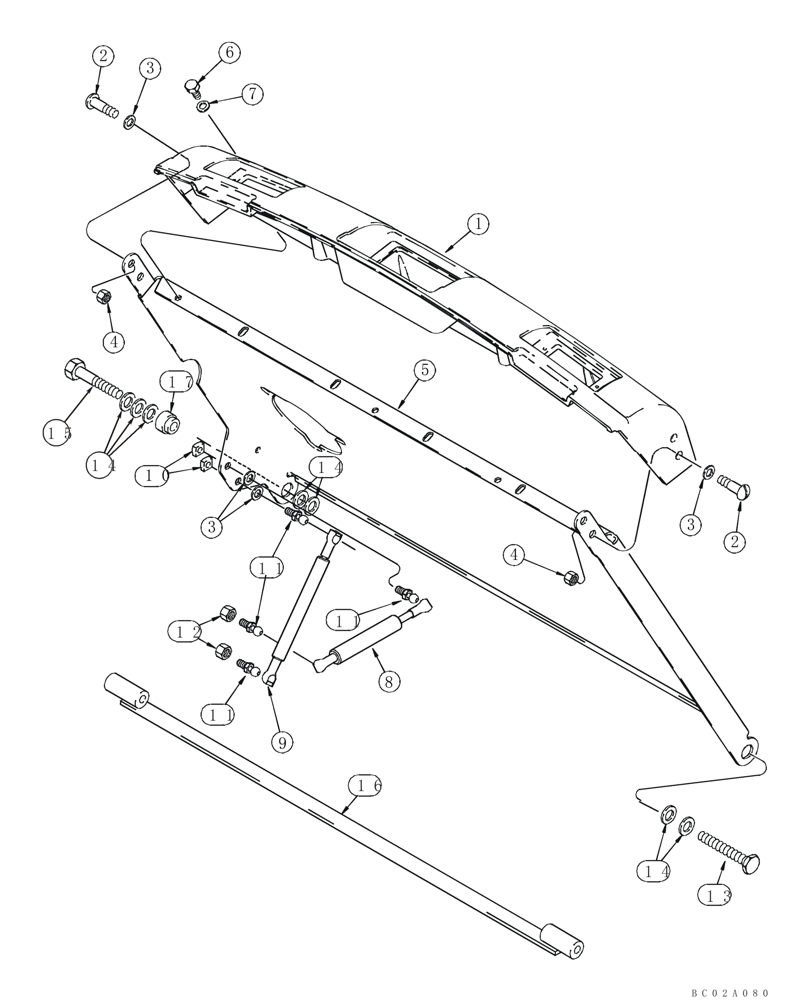

Запчасти Case IH 435 (09-14) - HOOD (09) - CHASSIS

1

426787A1

COWLING

Upper Rear; Gray

1шт.

2

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

4шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

14048221

NUT,M8 x 1.25, Cl 10

4шт.

5

87433567

PLATE

Hood Sheet; Gray

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

Replaces 614-6016

4шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

38 mm strk; Hood

1шт.

9

400471A1

DAMPER

76 mm strk; Hood

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

11

189609A1

BALL STUD,M8 x 1.25

M8

4шт.

12

14048221

NUT,M8 x 1.25, Cl 10

2шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

15

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

16

294450A1

BAR

1шт.

17

284794A1

SPACER

1шт.
