Запчасти Case IH 435 (09-11) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS

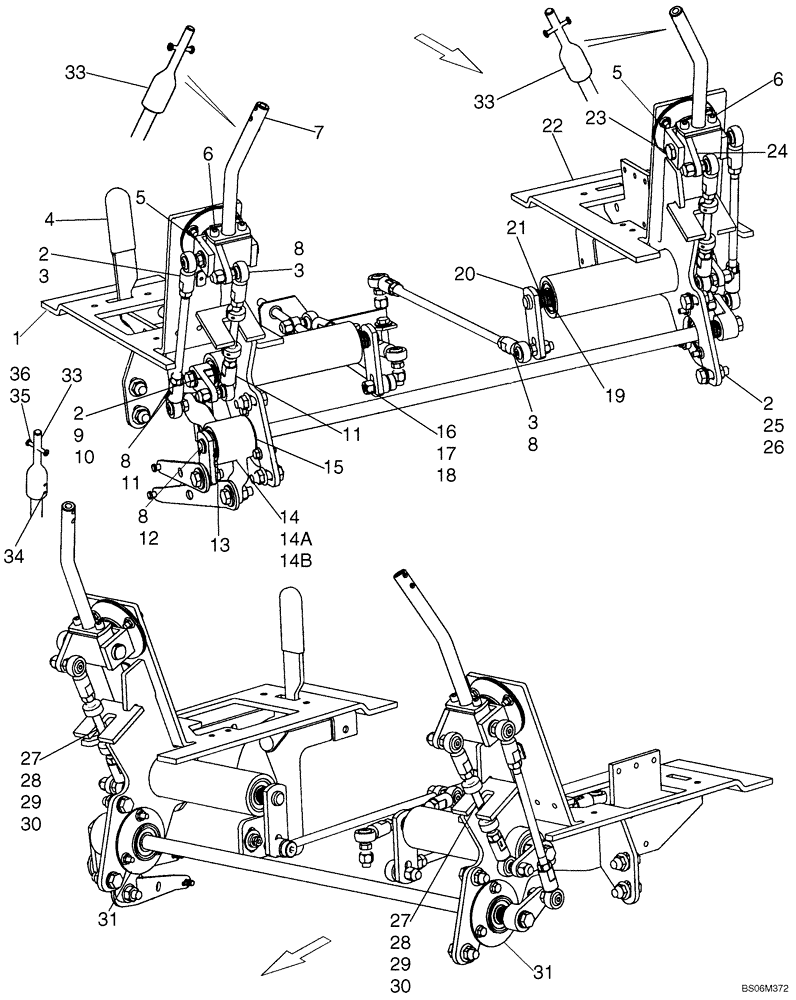

Схема запчастей Case IH 435 - (09-11) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS
34
27
8
16
3
5
31
8
33
24
28
18
9
10
26
35
2
2
36
25
2
23
28
14a
29
33
3
31
11
14b
15
12
7
14
11
8
21
29
20
13
33
6
30
5
6
4
19
17
1
30
3
27
22
8

Артикул

Название

Примечание

Количество

1

87618096

FRAME

Right Hand; Replaces 87455434

1шт.

2

140017

WASHER,M10 x 20mm OD x 2mm Thk

11-15шт.

3

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

Fem 3/8-24 LH W/Hex Drive

4шт.

4

D126613

HANDLE

Grip Throttle

1шт.

5

87441548

SUPPORT

Arm, Lever Pivot

2шт.

6

1059012

SCREW

M6 x 16

4шт.

7

87427007

LEVER

For Attaching Parts, See Figure 04-16, 04-17

2шт.

8

80855

NUT,Hex, 3/8" - 24

7шт.

9

237773A1

LEVER ASSY.

Arm Crank

1шт.

10

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

11

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

Fem 3/8-24 RH W/Hex Drive

4шт.

12

275022A1

SHAFT

With Loader Cross

1шт.

13

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

14

239908A4

CRANK

Bucket Linkage Pivot

1шт.

14a

318531A3

CRANK

Incl. 14A, 14B

1шт.

14b

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

2шт.

15

240621A1

SPACER

25.4 OD, 17.46 ID x 8.4

1шт.

16

87030527

SCREW,Hex Skt, 3/8" - 16 x 1/2"

3/8 .500 x .500 in

1шт.

17

337101A2

BUSHING

15.88 OD, 12.7 ID x 11.11

1шт.

18

88902

NUT,3/8"-16

1шт.

19

102776A1

BEARING, BALL,17 mm ID x 40 mm OD x 12 mm

4шт.

20

238968A3

SHAFT

Shaft, Ground Drive

2шт.

21

229383A1

SPRING

3шт.

22

87618097

FRAME

Left Hand; Replaces 87439617

1шт.

23

237774A1

SHAFT

2шт.

24

238357A3

PIVOT

2шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6-12шт.

26

43435

FLANGE NUT,Hex, M10 x 1.5

4-8шт.

27

187234A2

ROD

124 mm

2шт.

28

255561A1

COLLAR ASSY.

Threaded Stop

4шт.

29

86509310

NUT,3/8" - 24, Gr 5

2шт.

30

87030547

NUT,3/8" - 24, LH Thd, Gr 5

2шт.

31

112380A1

BEARING ASSY

Incl 465004R91

2шт.

32

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball; Not Illustrated

1шт.

33

87564037

HANDLE

Used With Handles On 04-15B, 04-16B

2шт.

34

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

Set Screw, #10-32 x 1/4; Used With Handles On 04-15B, 04-16B

4шт.

35

87534744

FASTENER,BTN HD, #10 - 32 x 5/8"

Screw, Hex Soc #10-32 x 5/8; Used With Handles On 04-15B, 04-16B

4шт.

36

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

Used With Handles On 04-15B, 04-16B

4шт.

Выбрано товаров: 38
