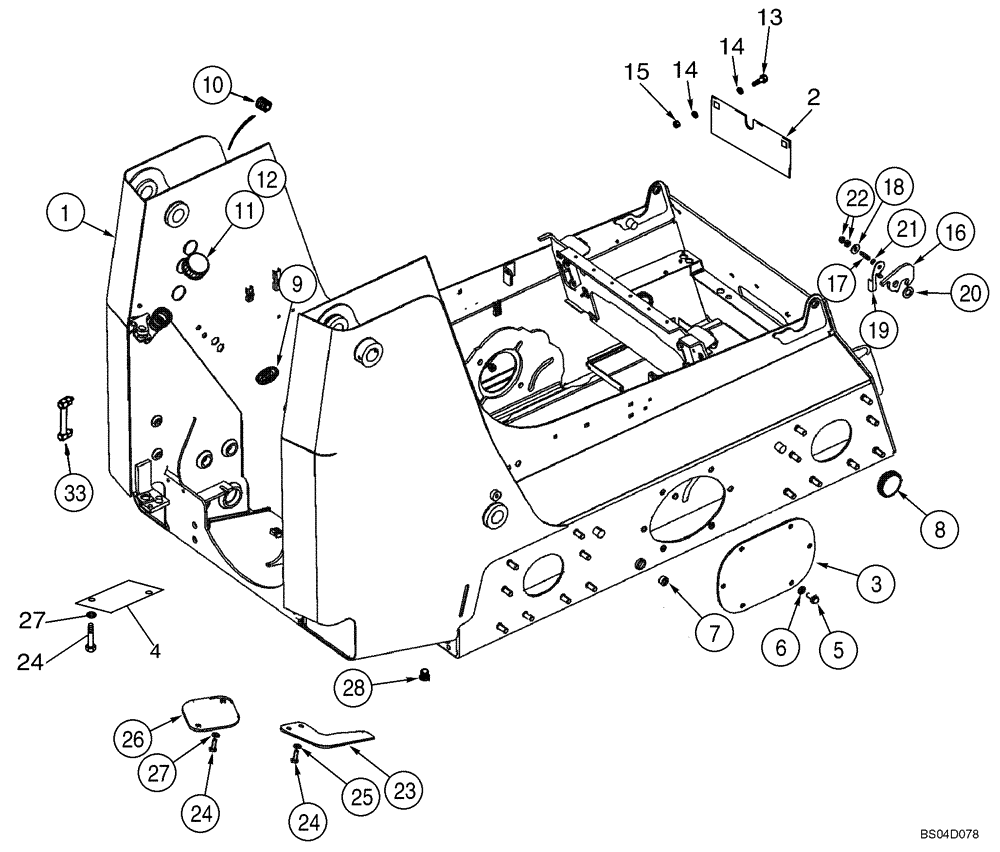

Запчасти Case IH 435 (09-08) - CHASSIS (09) - CHASSIS

87449808

SERVICE KIT

435 Chassis Kit; Order From Wholegoods; Incl. Frame 87618136 Used in Production, Ref 19, 20, Figure 04-07 Ref 21, 22, 23, Decal 251745A1, And Various Plugs

1шт.

1

87618136

FRAME; Order From Wholegoods; Replaces 87436418

1шт.

2

87041290

PLATE ASSY.

1шт.

3

87411208

COVER PLATE

2шт.

4

H436914

LARGE PLATE

PLATE, LARGE

1шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

7

86625118

DRAIN PLUG,1/2" - 14 NPT

2шт.

8

86991034

PLUG

Axle Access

4шт.

9

H436887

CAP

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

Hydraulic Reservoir

1шт.

11

257448A1

CAP

Oil Filler; Incl. 14

1шт.

12

292259A1

SEAL

Filler Cap

1шт.

13

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

86512554

NUT,M10 x 1.5, Cl 10

2шт.

16

294910A1

LATCH

ROPS

1шт.

17

294943A1

STUD

1шт.

18

294967A1

WASHER

1шт.

19

294911A2

HOOK

1шт.

20

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

21

278332A1

SPRING WASHER

1шт.

22

100016

NUT,M10 x 1.5, Cl 8

2шт.

23

189422A1

COVER

2шт.

24

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

25

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

26

247609A1

COVER

3шт.

27

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

28

86625135

PLUG,1" - 11-1/2 NPT

1шт.

33

87374752

GAUGE

Replaces 87424266

1шт.

87422323

PLATE

Rear Tie Down Brackets

2шт.
