Запчасти Case IH 435 (02-06) - ENGINE - MOUNTING (02) - ENGINE

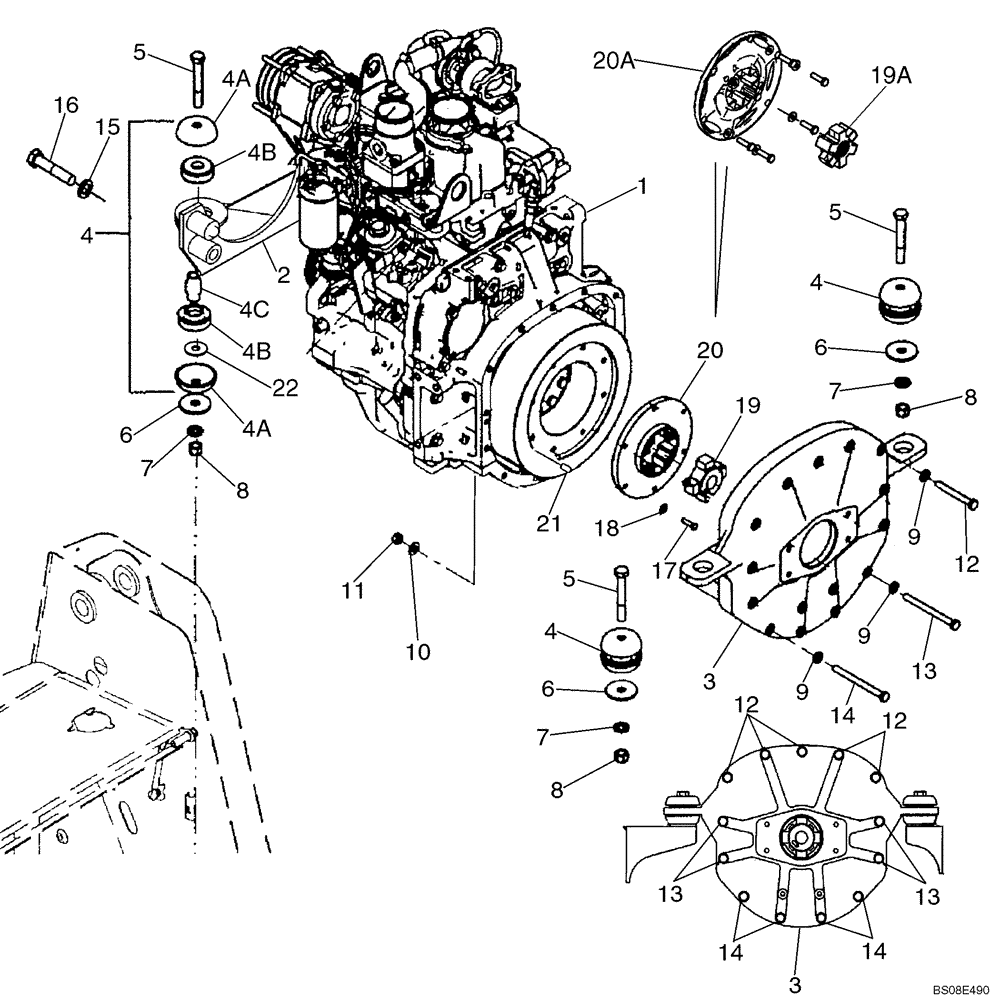

Схема запчастей Case IH 435 - (02-06) - ENGINE - MOUNTING (02) - ENGINE
9
13
19a
3
9
22
8
20
10
21
5
20a
18
1
4a
4
9
2
4a
4
7
16
19
4
4b
6
13
4c
14
12
5
17
8
13
5
6
3
12
4b
15
7
11
14
6
7
14
12
8

Артикул

Название

Примечание

Количество

1

87039745

ENGINE

3 Cylinder; Without Alternator

1шт.

87039745R

REMAN-REPLACEMENT EN

435, T2 Eng., Aspiration TC, Start Yr. 3/04, N.A. Only

1шт.

87039745C

CORE-REPLACEMENT ENG

Return Number, For N.A. Only

1шт.

1

84281975R

435, T2 Eng., Aspiration TC, Start Yr.3/04

REMAN-BASIC ENGINE,3 Cylinders

1шт.

1

84281975C

Return Number

CORE-BASIC ENGINE,3 Cylinders

1шт.

87533643

SHORT ENGINE

Short; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft

1шт.

87533643R

REMAN-SHORT ENGINE

435 BSN N7M425032 (3/04-12/07)

1шт.

87533643C

CORE-ENGINE

Return Number

1шт.

87533643ER

SHORT ENGINE

Reman Short; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft

1шт.

87533643EPAC

CORE-EPA ENGINE

Core Return Number

1шт.

2

87041836

ENGINE MOUNT

1шт.

3

86837673

ADAPTER

Engine

1шт.

3

87519229

ADAPTER

Engine Adapter; Replaces 86837673

1шт.

4

87048678

KIT

Incl. 4B, 87048686, (1) 4C

3шт.

4

87462644

ENGINE MOUNT

Replaces 87048678; Incl. 4B, 87462643, (2) 4C

3шт.

4a

86837669

CUP

2шт.

4b

87048686

ISOLATOR

2шт.

4b

87462643

ISOLATOR

Isolator

2шт.

4c

87048677

SPACER

1-2шт.

5

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

3шт.

6

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

3шт.

7

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

8

86512555

NUT,M16 x 2, Cl 10

3шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

17шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

11

9706685

NUT,M12 x 1.75, Cl 8

6шт.

12

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

5шт.

13

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

4шт.

14

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

4шт.

15

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

16

86900898

BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9

2шт.

17

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

19

87024588

HUB

Pump Drive Star, Use With Ref 20

1шт.

19a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Star, Use With Ref 20A

1шт.

20

87024539

ELEMENT

Pump Drive, Use With Ref 19

1шт.

20a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive, Use With Ref 19A

1шт.

21

87042057

PIN

10 x 20

2шт.

22

87462124

WASHER

If Used

3шт.

Выбрано товаров: 39
