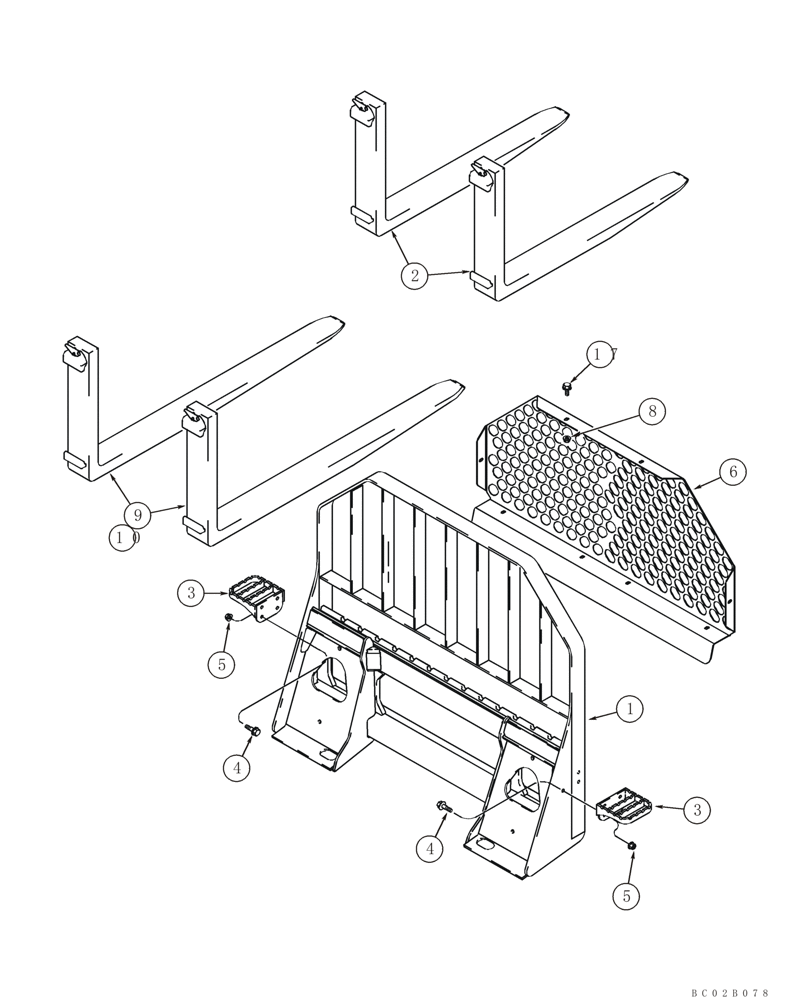

Запчасти Case IH 435 (09-07B) - PALLET FORK (09) - CHASSIS

1

239290A1

RACK

North American Only

1шт.

2

351003A1

TINE

1070 mm, 42 Inch; If Used; Incl. 431453A1

2шт.

431453A1

HEADED PIN

Kit

1шт.

3

259096A1

STEP

2шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

5

43435

FLANGE NUT,Hex, M10 x 1.5

6шт.

6

283788A1

SCREEN

North American Only

1шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

9

334857A1

FORK

1220 mm; 48 Inch; Heavy Duty

2шт.

10

86574055

BUCKET FORK,48" L

1220 mm; 48 Inch; Standard

2шт.
