Запчасти Case IH 435 (09-07A) - BUCKETS, LOADER - 2134 MM (84 IN) WIDE BUCKET (09) - CHASSIS

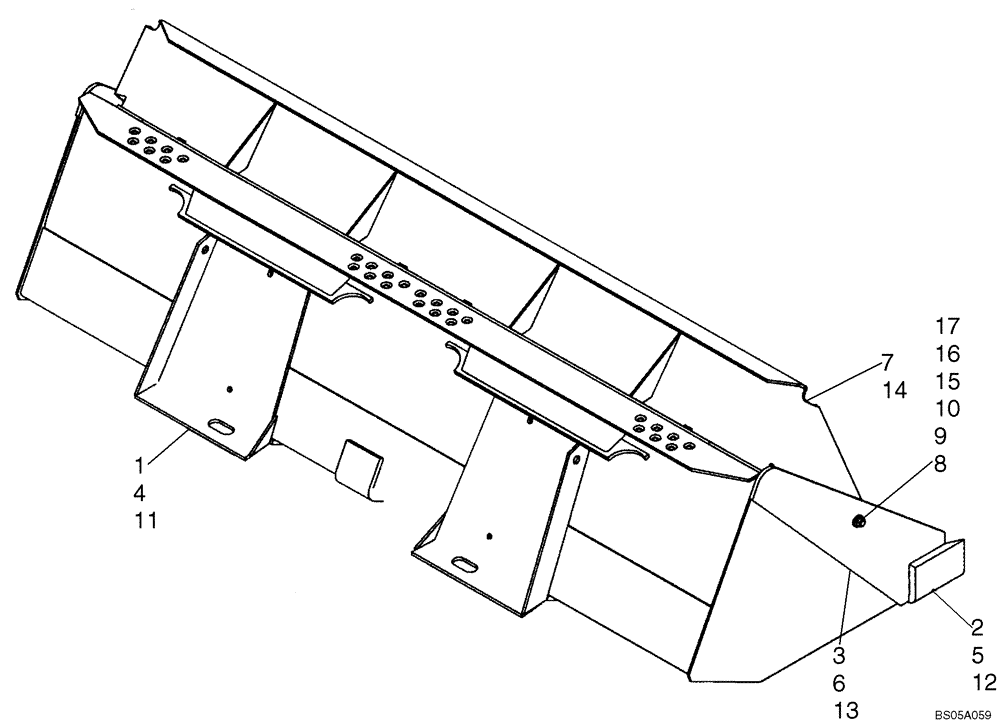

Схема запчастей Case IH 435 - (09-07A) - BUCKETS, LOADER - 2134 MM (84 IN) WIDE BUCKET (09) - CHASSIS
7
13
9
16
2
6
14
15
1
17
10
8
3
4
11
5
12

Артикул

Название

Примечание

Количество

1

86994100

BUCKET

Bucket; Light Material; 84 in; Order From Whole Goods; Incl. 2, 3

1шт.

2

87400358

CUTTING EDGE

84 in

1шт.

3

H438935

EDGE, CUTTING

Side

2шт.

4

86994088

BUCKET

Bucket; Dirt; 84 in; Order From Whole Goods; Incl. 5, 6

1шт.

5

87400358

CUTTING EDGE

84 in

1шт.

6

245109A2

EDGE, CUTTING

Side

2шт.

EXTENSIONS FOR 86994088

1шт.

7

87403474

EXTENSION

Extension With Spill Guard

1шт.

8

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

9

43436

FLANGE NUT,M12

2шт.

10

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

11

86994091

BUCKET

Bucket; Heavy Duty Dirt; 84 in; Order From Whole Goods; Incl. 12, 13

1шт.

12

87403368

CUTTING EDGE

84 in

1шт.

13

245109A2

EDGE, CUTTING

Side

2шт.

EXTENSIONS FOR 86994091

1шт.

14

87403595

EXTENSION

Extension With Spill Guard

1шт.

15

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

16

43436

FLANGE NUT,M12

2шт.

17

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

Выбрано товаров: 19
