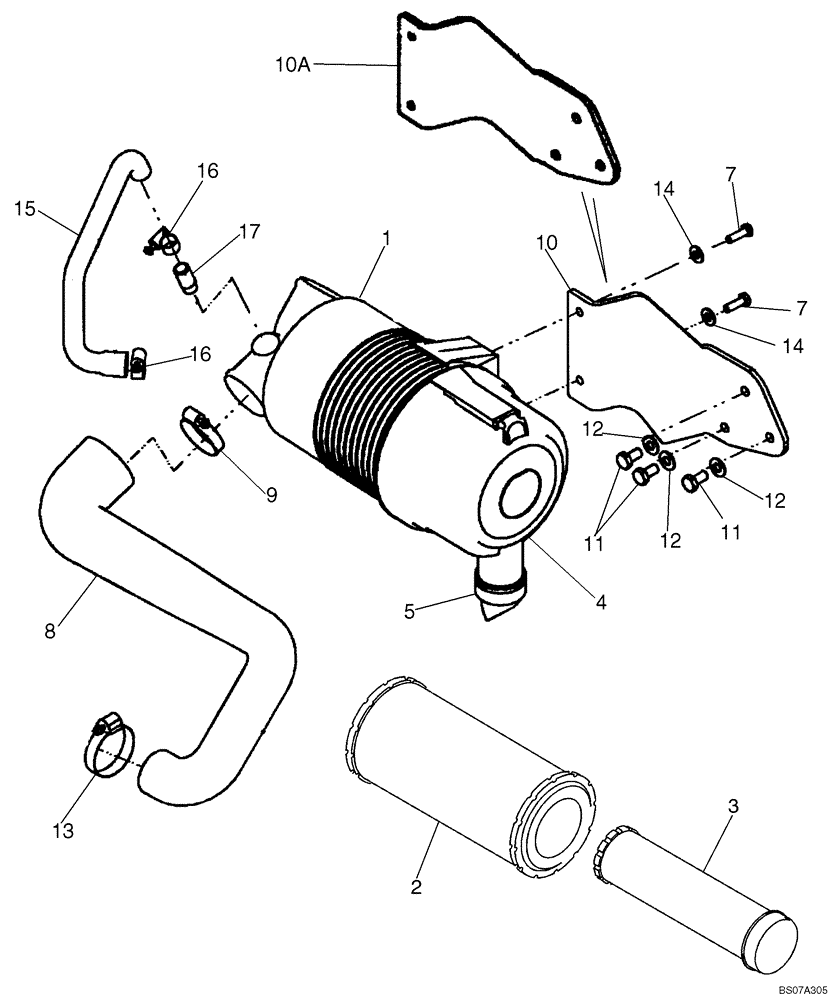

Запчасти Case IH 435 (02-04) - AIR CLEANER - ENGINE (02) - ENGINE

87041485

CLEANER ASSY.

Air Cleaner; Incl. 1 - 5

1шт.

1

87041842

AIR CLEANER

Body

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

4

440831A1

FILTER COVER

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

87351980

INTAKE AIR HOSE,44.00 mm ID, 63.50 mm ID x 314.00, SAE J20R4

Replaces 87037046

1шт.

9

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

10

257865A2

BRACKET

1шт.

10a

87582485

BRACKET

Replaces 257865A2

1шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

13

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

15

87352015

HOSE,17.0 mm ID, 22.0 mm ID x 213.0 mm SAE 30R2 TYPE 1

Replaces 87037045

1шт.

16

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

Replaces 214-1412

2шт.

17

L17985

FITTING,3/8" - 18 NPT

Connector

1шт.
