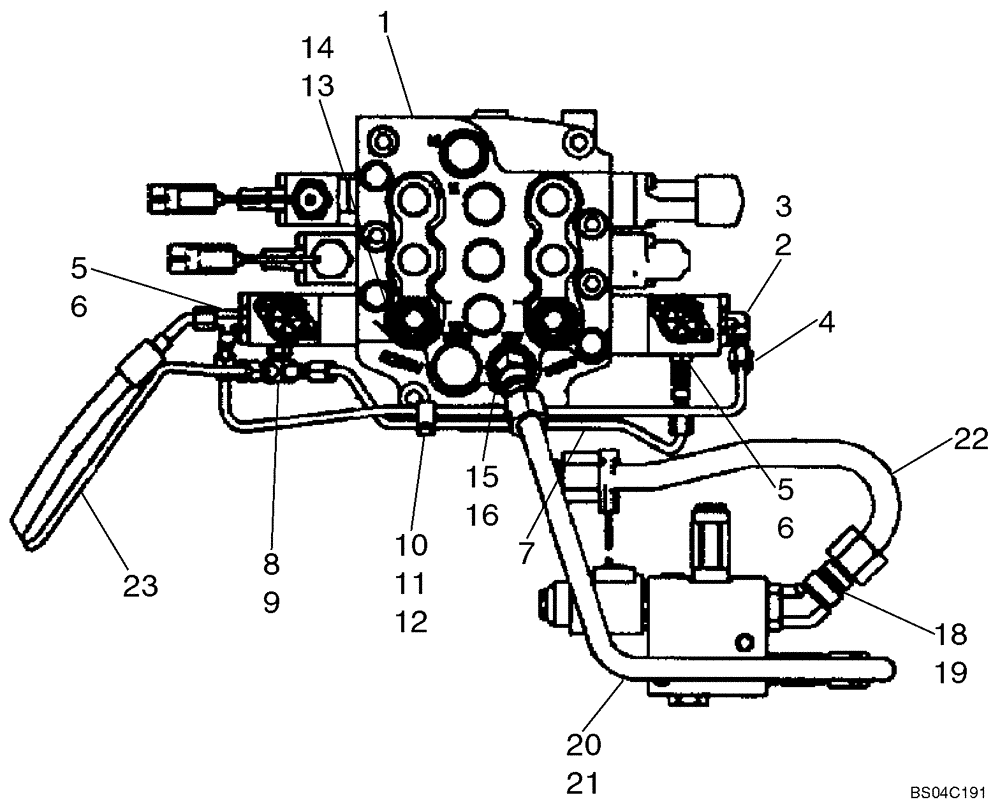

Запчасти Case IH 435 (08-16) - HYDRAULICS, ATTACHMENT - HIGH FLOW, CONTROL VALVE (08) - HYDRAULICS

1

87446766

CONTROL VALVE

See Figure 08-08

1шт.

1

87635385R

435 SKID STEER - BSN N7M425032 (3/04-12/07), Reman for New PN 87446766

REMAN-HYD VALVE

1шт.

1

87635385C

Return Number

CORE-VALVE HYD

1шт.

1

87583286

VALVE

Control Valve; Replaces 87527174; See Figure 08-22

1шт.

2

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

87018051

TUBE,6.35 mm OD

1шт.

5

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 6

2шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

87443078

HYD TUBE

Pilot Pressure

1шт.

8

87443051

ELBOW

Side Outlet -4ORB X -4JIC

1шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

608089

CLAMP

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

12

87030561

NUT,M6 x 1, Cl 8

1шт.

13

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 14

2шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

15

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 16

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

87436469

HYD TUBE,15.88 mm OD

High Flow Supply

1шт.

18

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

20

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl. 21

1шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

87436470

HYD TUBE,19.05 mm OD

High Flow Return

1шт.

23

87439064

HYD TUBE,6.35 mm OD

Pilot Pressure; To Accumulator; See Figure 08-14

1шт.
