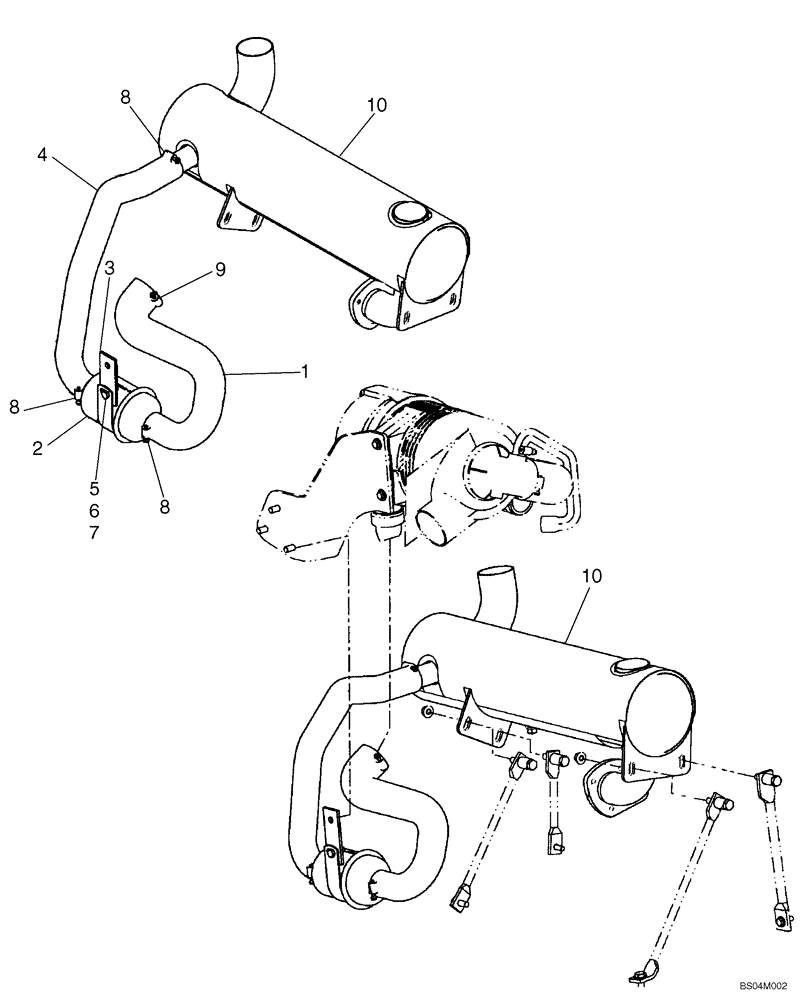

Запчасти Case IH 435 (02-03A) - EXHAUST SYSTEM, ASPIRATOR (02) - ENGINE

87584267

SERVICE KIT

Aspirator Kit, Incl. 1 - 10

1шт.

1

87038234

INTAKE AIR HOSE,38.00 mm ID, 50.00 mm ID x 234.80, SAE 20R4 CLASS D1

Check Valve to Air Cleaner

1шт.

2

406089A2

VALVE

Aspirator Check

1шт.

3

87582469

PLATE

Mounting Plate With Slotted Holes; Replaces 87038233 With Out Slotted Holes

1шт.

4

87038235

HOSE,38.1 mm ID x 327.50 mm, SAE J20R4 CLASS D1

Check Valve to Muffler

1шт.

5

87023131

BOLT,Hex, M8 x 25mm, Cl 8.8, Full Thd

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1-2шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

8

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

9

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

10

87037640

MUFFLER

Aspirating Exhaust Muffler

1шт.
