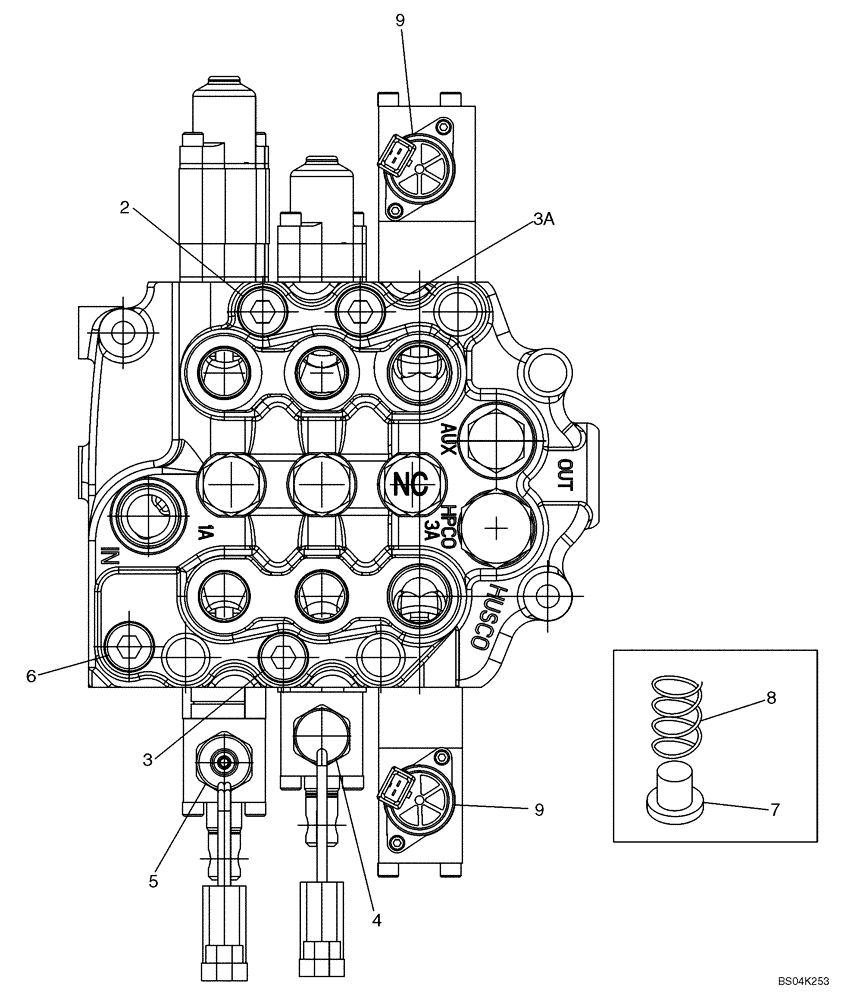

Запчасти Case IH 435 (08-08) - VALVE ASSY, CONTROL - HIGH FLOW (08) - HYDRAULICS

87446766

CONTROL VALVE

High Flow; Incl. 1 - 9

1шт.

87635385R

435 SKID STEER - BSN N7M425032, HIGH FLOW (3/04-12/07), Reman for New PN 87446766

REMAN-HYD VALVE

1шт.

87635385C

Return Number

CORE-VALVE HYD

1шт.

87527174

VALVE

High Flow; Replaces 87446766; Component Parts Not Yet Available

1шт.

87635385R

435 SKID STEER - BSN N7M425032, High Flow (3/04-12/07), Reman for New PN 87527174

REMAN-HYD VALVE

1шт.

87635385C

Return Number

CORE-VALVE HYD

1шт.

1

87445930

SEAL KIT

Seal Replacement; See Figure 08-10

1шт.

2

87445935

VALVE

Workport, Relief; Component Parts Not Serviced Separately

1шт.

3

87424302

PLUG

Workport, Shutoff; Component Parts Not Serviced Separately

2шт.

3a

87445932

VALVE

Anti-Cavitation Cartridge; If Used; Component Parts Not Serviced Separately

1шт.

4

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool, Lockout; Component Parts Not Serviced Separately

1шт.

5

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool, Lockout; Component Parts Not Serviced Separately

1шт.

6

87445991

VALVE

Main Relief; Component Parts Not Serviced Separately

1шт.

7

87446002

POPPET

Load Check; Component Parts Not Serviced Separately

2шт.

8

87446003

SPRING,6.7mm OD

Load Check; Component Parts Not Serviced Separately

2шт.

9

87446004

SOLENOID VALVE

High Flow; Component Parts Not Serviced Separately

2шт.
