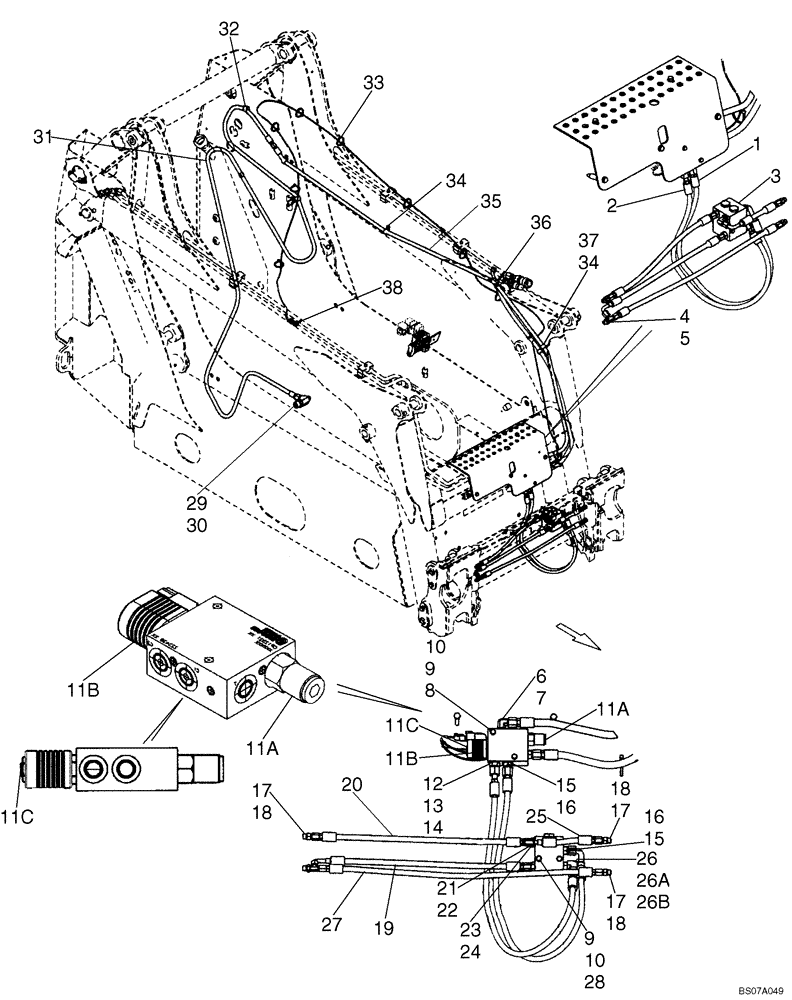

Запчасти Case IH 435 (08-07A) - HYDRAULICS - COUPLER SYSTEM, IF USED (08) - HYDRAULICS

87388077

CONVERSION KIT

Kit To Convert From Connection Into Bucket Circuit (Shown On 08-07) To Connection Between Gear Pump And Loader Valve; Incl. Ref 29, 31, 32, 33, 34, 35, Elbow 248974 and Instructions

1шт.

87393400

SERVICE KIT

Hydraulic Coupler; Incl. 1 - 38 And Figure 09-05, Ref 1 - 28

1шт.

1

87437471

HOSE ASSY.,6.35mm ID x 860mm L

860 mm (33-7/8 in)

1шт.

2

87426493

HOSE ASSY.,6.35mm ID x 830mm L

830 mm (32-11/16 in)

1шт.

3

294741A1

CHECK VALVE

Component Parts Not Serviced Separately

1шт.

4

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 5

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 7

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

10

87030561

NUT,M6 x 1, Cl 8

4шт.

11

87421480

HYDRAULIC VALVE

Hydraulic Coupler; Incl. 11A - 11C

1шт.

11a

87562923

VALVE

Sequence Valve Sauer No. CP240-21-B-0-A-C-270

1шт.

11b

87433496

COIL

Sauer No. 322113

1шт.

11c

87562926

VALVE

Sequence Valve Sauer No. CP538-1-U-0-12D-DE

1шт.

12

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl. 13, 14

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 16

3шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl. 18

3шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

87437473

HOSE ASSY.

500 mm (19-3/4 in)

1шт.

20

294884A1

HOSE ASSY.

506 mm (20 in)

1шт.

21

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 24

2шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

176 mm (7 in)

1шт.

26

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl. 226A, 26B

1шт.

26a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26b

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

27

87437472

HOSE ASSY.

640 mm (25-3/16 in); Cylinder Connection

1шт.

28

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

2шт.

29

87597961

ADAPTER

Incl. 30; Replaces 218-5294

1шт.

30

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

87368354

HOSE

4216 mm (165.98 in)

1шт.

32

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

No Longer Used, Order 87029955

2шт.

32

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

33

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

10шт.

34

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

35

87374325

HOSE

2667 mm (105 in)

1шт.

36

87437474

HOSE ASSY.

1150 mm (45-9/32 in); Coupler Return; Remove Cap From Tube Fitting On Case Drain Line To Install

1шт.

37

87029931

SCREW,Hex Washer, 5/16" - 18 x 1"

5/16-18 x 1 HEX

1шт.

38

87446983

WIRE HARNESS

Hydraulic Coupler

1шт.
