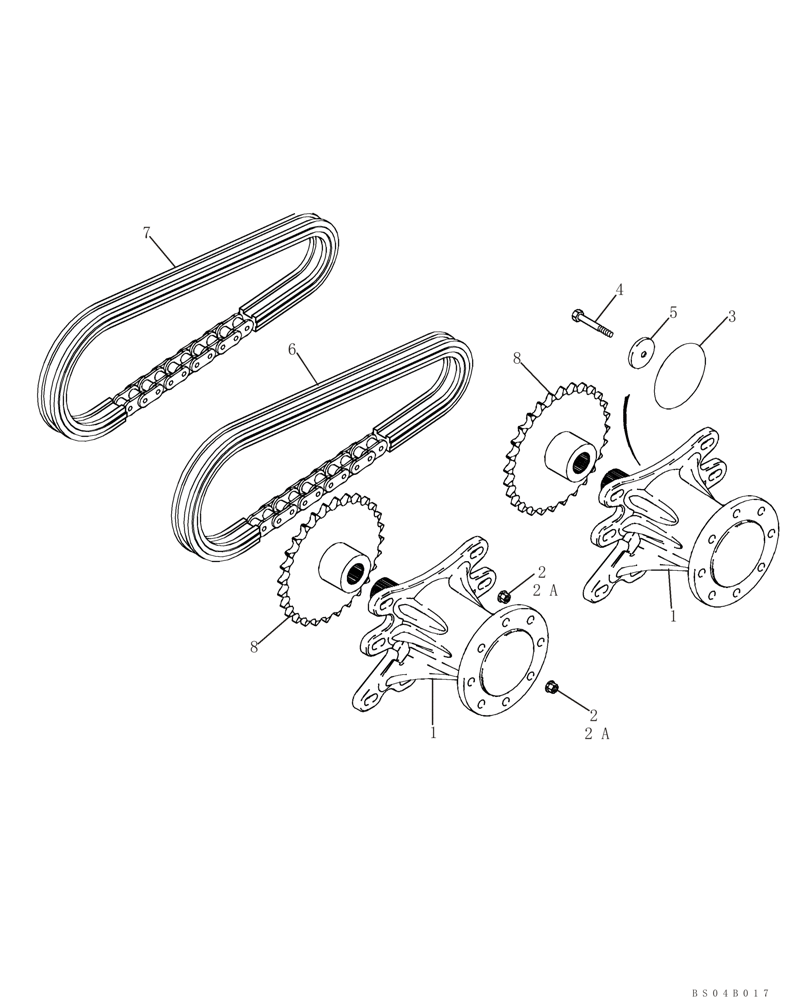

Запчасти Case IH 435 (06-24) - DRIVE LINE (06) - POWER TRAIN

1

338552A3

MAIN SHAFT,Assembly

AXLE ASSY; See Figure 06-25

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

Used with 06-26 Ref 1, 2

32-64шт.

2a

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16; 10; Used With 06-26 Ref 3, 4

32шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

86577946

BOLT,Hex, M16 x 80mm x 10.9

Use Permatex ZPX24210

4шт.

ZPX24210

SEALANT, THREAD

10 ml

1шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

233112A1

CHAIN (CE)

100/56P

2шт.

7

86992013

CHAIN

100/54P

2шт.

8

228141A2

SPROCKET ASSY.

28T

4шт.
