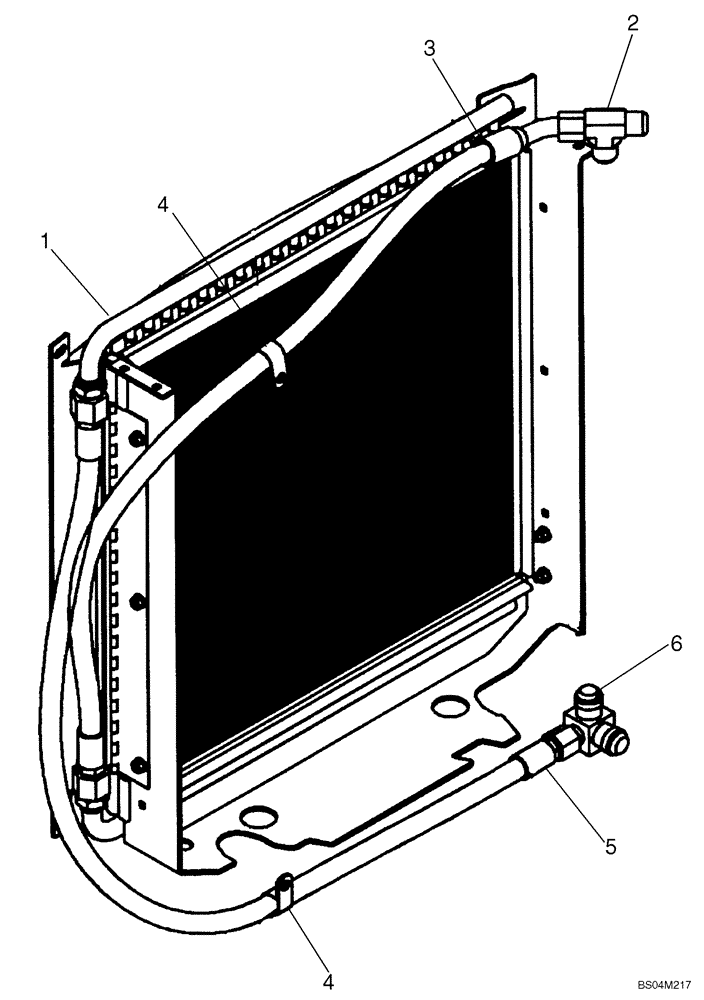

Запчасти Case IH 430 (06-01B) - OIL COOLER - HIGH FLOW (06) - POWER TRAIN

1

REF

INSTRUCTION

Oil Cooler Assy; See Figure 06-01A

1шт.

2

87303737

TEE,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree Run

1шт.

3

87456679

HOSE ASSY.,12.7mm ID x 1150mm L, SAE 100R1

1шт.

4

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

5

87455496

HOSE ASSY.,12.7mm ID x 1200mm L, SAE 100R1

1шт.

6

252946A1

TEE

1шт.
