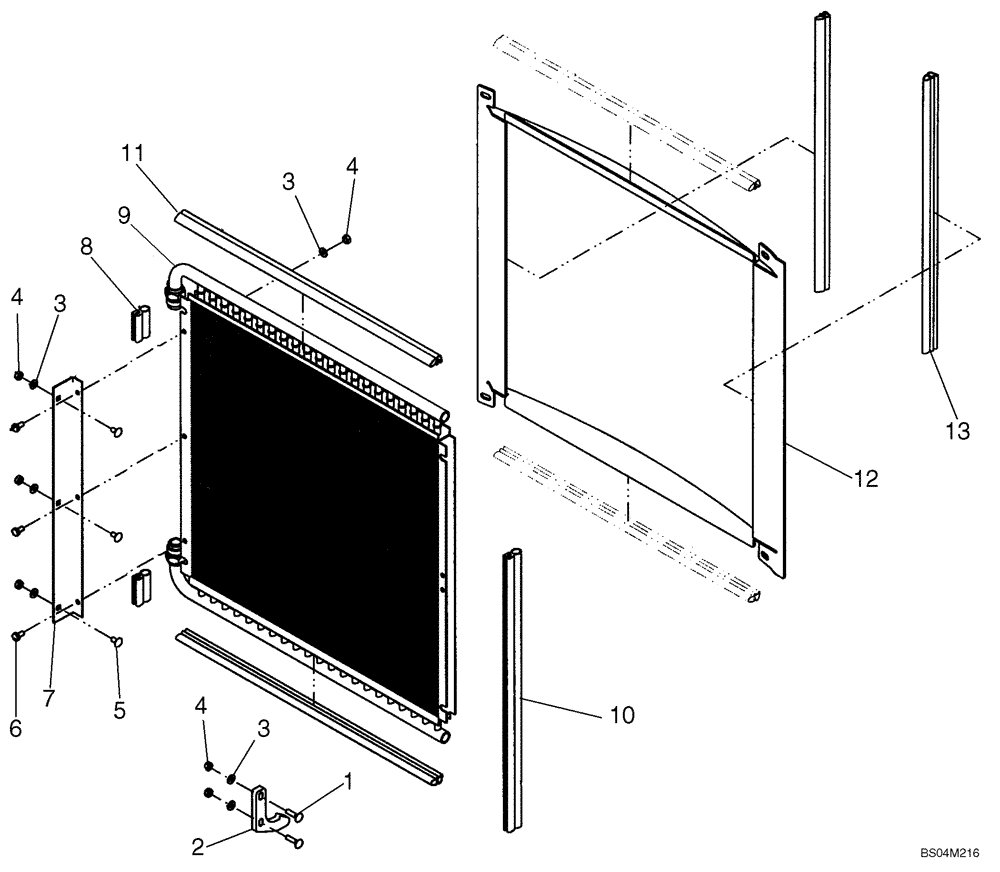

Запчасти Case IH 430 (06-01A) - OIL COOLER ASSY - HIGH FLOW (06) - POWER TRAIN

87571188

KIT

High Flow Kit; Incl. 1 - 13, And Figures 08-17, 08-18, 08-19

1шт.

1

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

2шт.

2

87028388

LATCH

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

5

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

3шт.

6

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

7

87604793

HINGE

Hinge With Slotted Holes, Heavy Duty Door; See Fig. 09-15

1шт.

7

87019622

HINGE

Hinge With Round Holes, Standard Door; See Fig. 09-15

1шт.

8

87033636

SEAL

2шт.

9

87015306

OIL COOLER

1шт.

10

87026112

SEAL

1шт.

11

87016847

SEAL

2шт.

12

87050684

FRAME

1шт.

13

87021294

SEAL

2шт.
