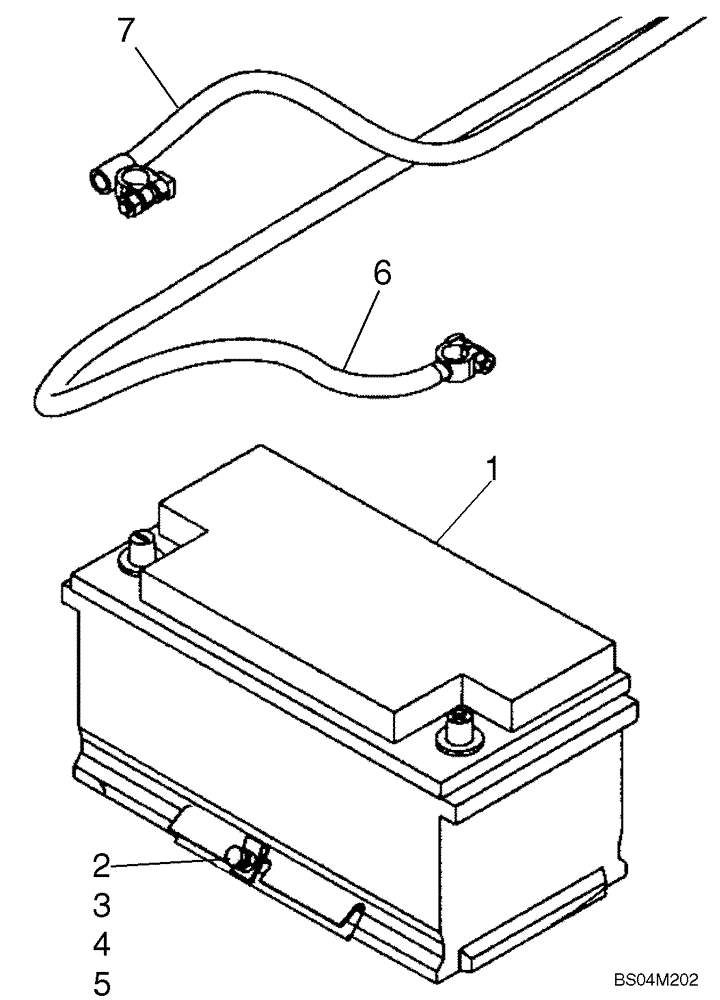

Запчасти Case IH 430 (04-03) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

850 CCA

1шт.

2

833-40408

NUT,M8, U

1шт.

3

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

4

87450956

ANGLE

Battery Hold Down

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

1шт.

6

87052670

CABLE ASSY.

Positive; See Figure 04-05

1шт.

7

338030A1

CABLE ASSY.

Negative; See Figure 04-05

1шт.
