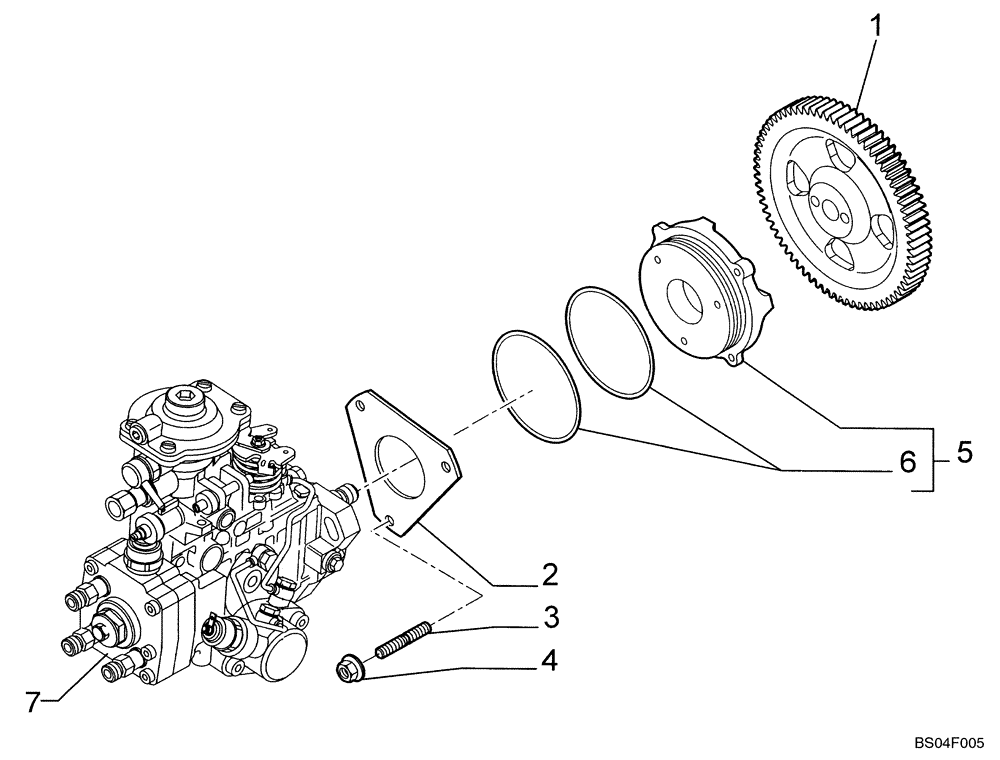

Запчасти Case IH 430 (03-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

4894774

DRIVEN GEAR

1шт.

2

2852885

GASKET,1.2mm Thk

1шт.

3

2852294

STUD,M8 x 1.25 x 30

3шт.

4

4899003

FLANGE NUT,M8 x 1.25

3шт.

5

4894729

SPACER

1шт.

6

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

7

REF

INSTRUCTION

INJECTION PUMP; See Figure 03-04

1шт.
