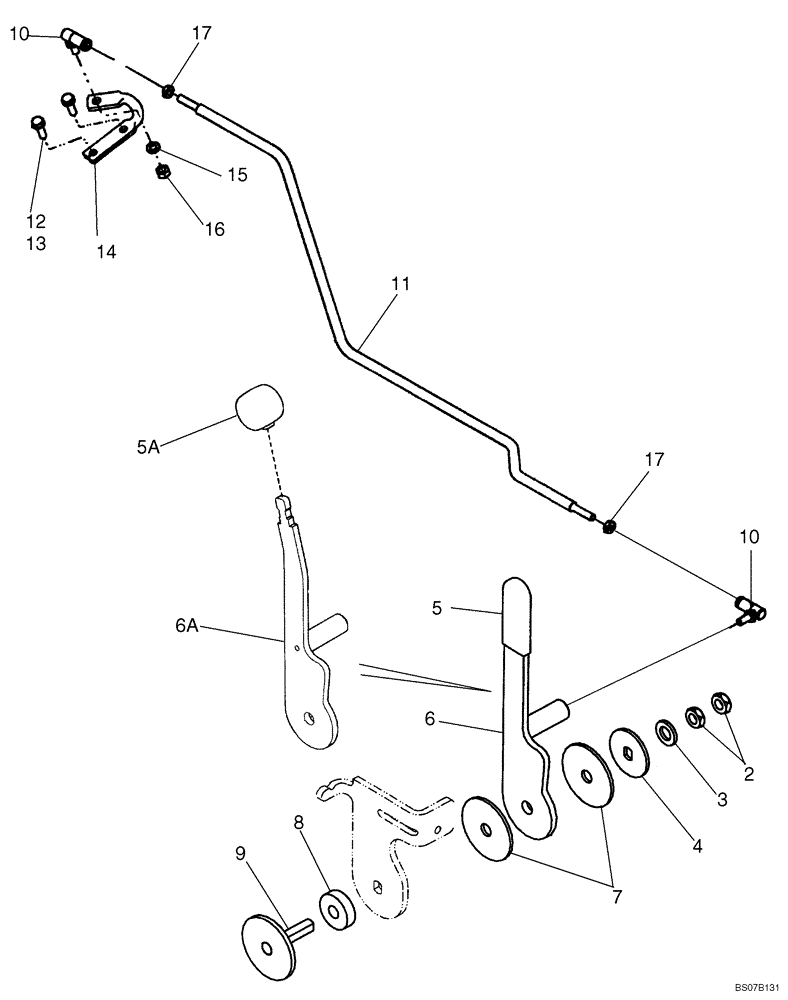

Запчасти Case IH 430 (03-02) - CONTROLS - THROTTLE (03) - FUEL SYSTEM

1

87421450

Hand Throttle; Order Components, Incl. 2 - 9

1шт.

1

87593236

Hand Throttle; Incl. 2 - 4, 5A, 6A - 9

1шт.

2

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

Replaces 829-4412

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

4

257971A1

WASHER,13.1mm ID x 48mm OD x 3.05mm Thk

1шт.

5

D126613

HANDLE

Grip, Vinyl; If Used

1шт.

5a

A177436

KNOB

Knob, Control; If Used

1шт.

6

87416538

LEVER ASSY.

If Used

1шт.

6a

87573756

LEVER

Lever, Hand Throttle; If Used

1шт.

7

1342374C1

DISC

2шт.

8

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

1шт.

9

291244A1

LEVER

1шт.

10

H169920

BALL JOINT

2шт.

11

87043344

ROD

Throttle

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

14

87051143

ROD ASSY.

1шт.

15

80682

LOCK WASHER,1/4"

1шт.

16

86509309

NUT,1/4"-28, G5

1шт.

17

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

386880A2

STOP

Throttle Control; If Used

1шт.
