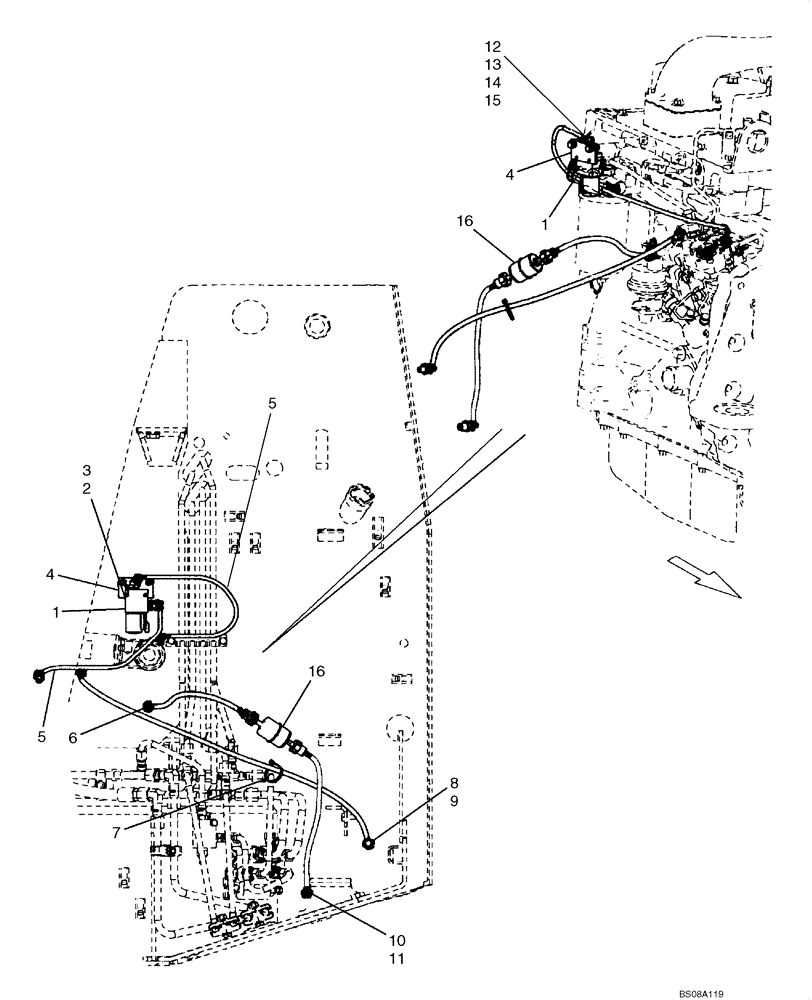

Запчасти Case IH 430 (03-01B) - FUEL LINES - FUEL SHUT-OFF VALVE, IF USED (03) - FUEL SYSTEM

87523553

REPAIR KIT

Fuel Shut-Off Kit; Incl. 1-5, 12 - 15, 17 And Instructions

1шт.

1

87518926

SHUT-OFF VALVE

Fuel Shut-Off Valve

1шт.

2

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

3

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

4

87523585

BLOCK

Valve Mounting Block

1шт.

5

87523742

FUEL HOSE,7.00 mm ID x 495.0 mm

Fuel Line

2шт.

6

87018091

TUBE

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

8

86601756

HYD CONNECTOR

246 NG8 To 1/4 NPTF

3шт.

9

87435843

FUEL HOSE,6.35 mm ID x 755.00 mm

1шт.

10

87436610

ADAPTER

3/8 NPTF

1шт.

11

87435842

TUBE,6.35 mm ID x 320.00 mm

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

13

412250

NUT,M8 x 1.25, Cl 8

2шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

2шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

If Used

2шт.

15

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

16

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

17

87523804

WIRE HARNESS

Not Illustrated

1шт.
