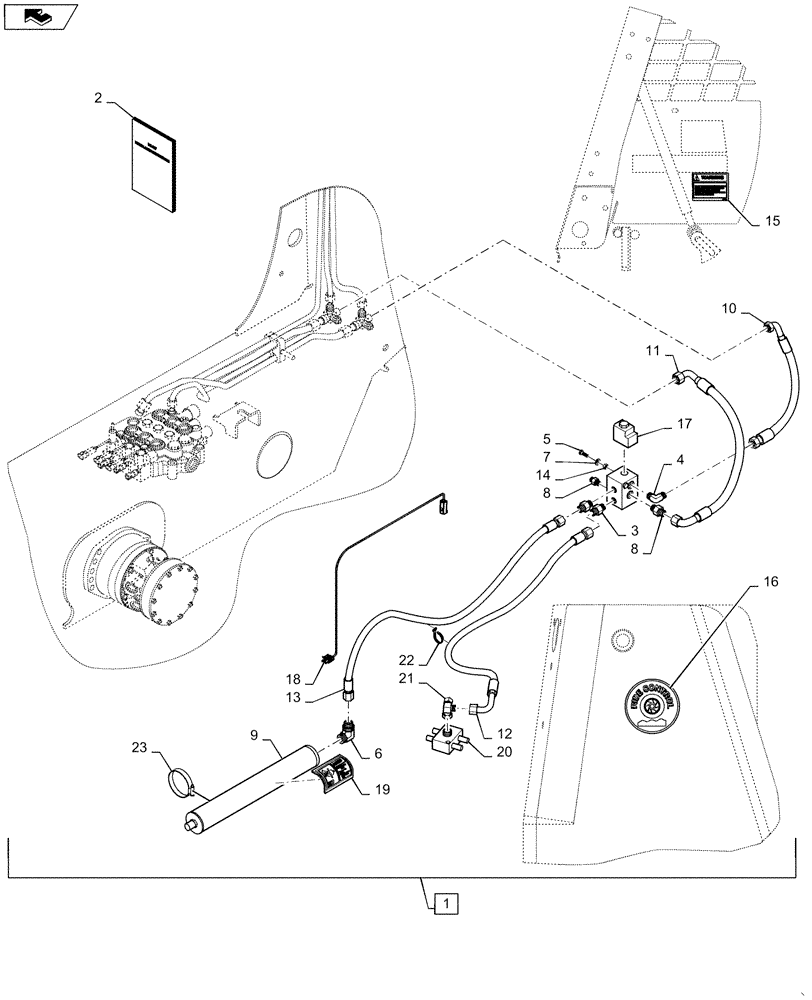

Запчасти Case IH 430 (88.035.02) - DIA KIT, I/ RIDE CONTROL (88) - ACCESSORIES

1

86994299

DIA KIT, ADD PROD

Ride Control, Incl 2 - 23

1шт.

2

6-79250

INSTRUCTION

Installation

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Lift, Boss

1шт.

4

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Adjustable, Boss

1шт.

5

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Adjustable, Boss

1шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

8

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Boss

2шт.

9

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

10

87441312

HOSE ASSY.

1шт.

11

87441313

HOSE ASSY.

Valve To Cylinder Base

1шт.

12

87456974

HOSE ASSY.

Valve To Tank

1шт.

13

87441310

HOSE ASSY.

Valve To Accumulator

1шт.

14

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

15

255927A1

WARNING DECAL

Ride Control Warning

1шт.

16

304083A1

DECAL

Ride Control Option_Decalcomania

2шт.

17

87428444

VALVE

Solenoid Ride Control

1шт.

18

310838A1

HARNESS

Ride Control All XT

1шт.

19

384260A1

WARNING DECAL,168mm x 88mm H

Accumulator In System

1шт.

20

574342

CAP,9/16" - 18 JIC

Flow Female - Tube

1шт.

21

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Tee, JIC Run, Boss Branch

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

23

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

Gear

2шт.
