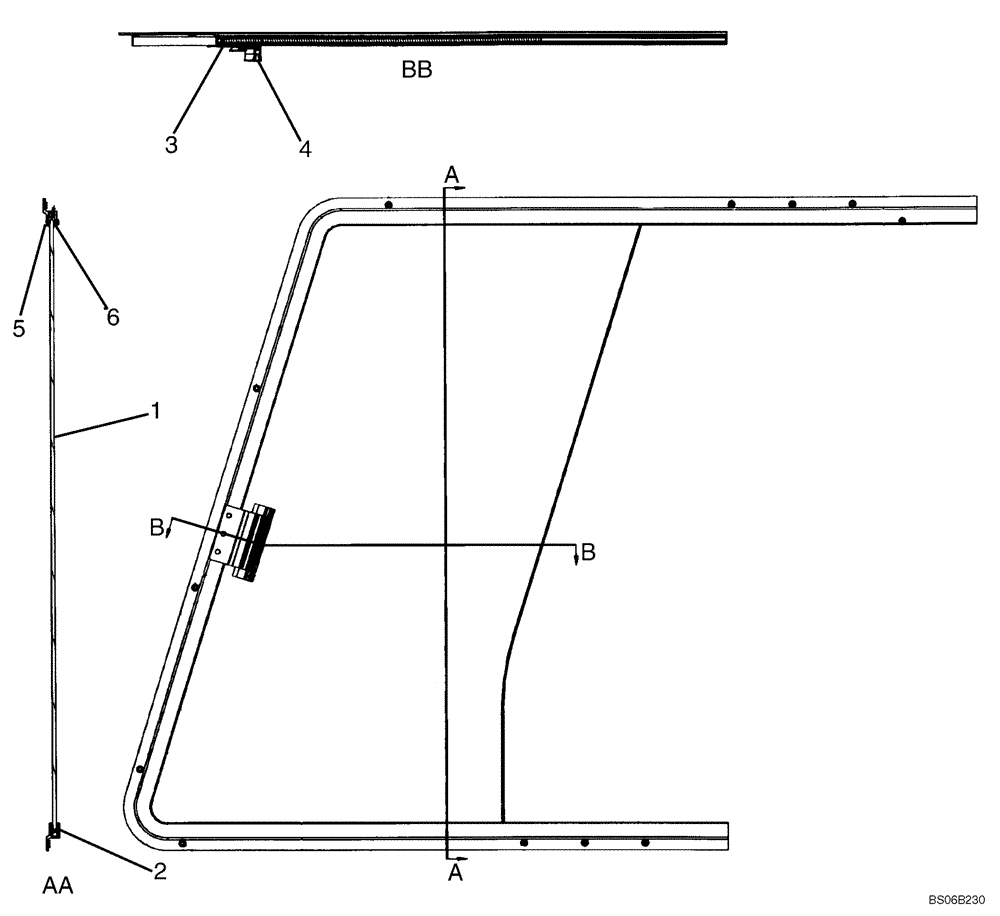

Запчасти Case IH 430 (09-26A) - WINDOW ASSY (09) - CHASSIS

87456517

WINDOW

Interior Right Hand; Incl. 1 - 6

1шт.

1

87385419

GLASS

Right Hand Slider Glass Panel Assembly

1шт.

2

87385421

FRAME ASSY

Right Hand Main Frame Assy

1шт.

3

87385422

PLATE

Stiker Plate

1шт.

4

87385423

LATCH ASSY.

Latch Assembly

1шт.

5

87385424

FELT

Track

1шт.

6

87385425

BLOCK

Stop Block

1шт.

87456516

WINDOW

Interior Left Hand; Incl. 7 - 12; Right Hand Window Illustrated

1шт.

7

87385417

GLASS

Left Hand Slider Glass Panel Assembly; Right Hand Illustrated

1шт.

8

87385420

FRAME ASSY

Left Hand Main Frame Assembly; Right Hand Illustrated

1шт.

9

87385422

PLATE

Stiker Plate

1шт.

10

87385423

LATCH ASSY.

Latch Assembly

1шт.

11

87385424

FELT

Track

1шт.

12

87385425

BLOCK

Stop Block

1шт.
