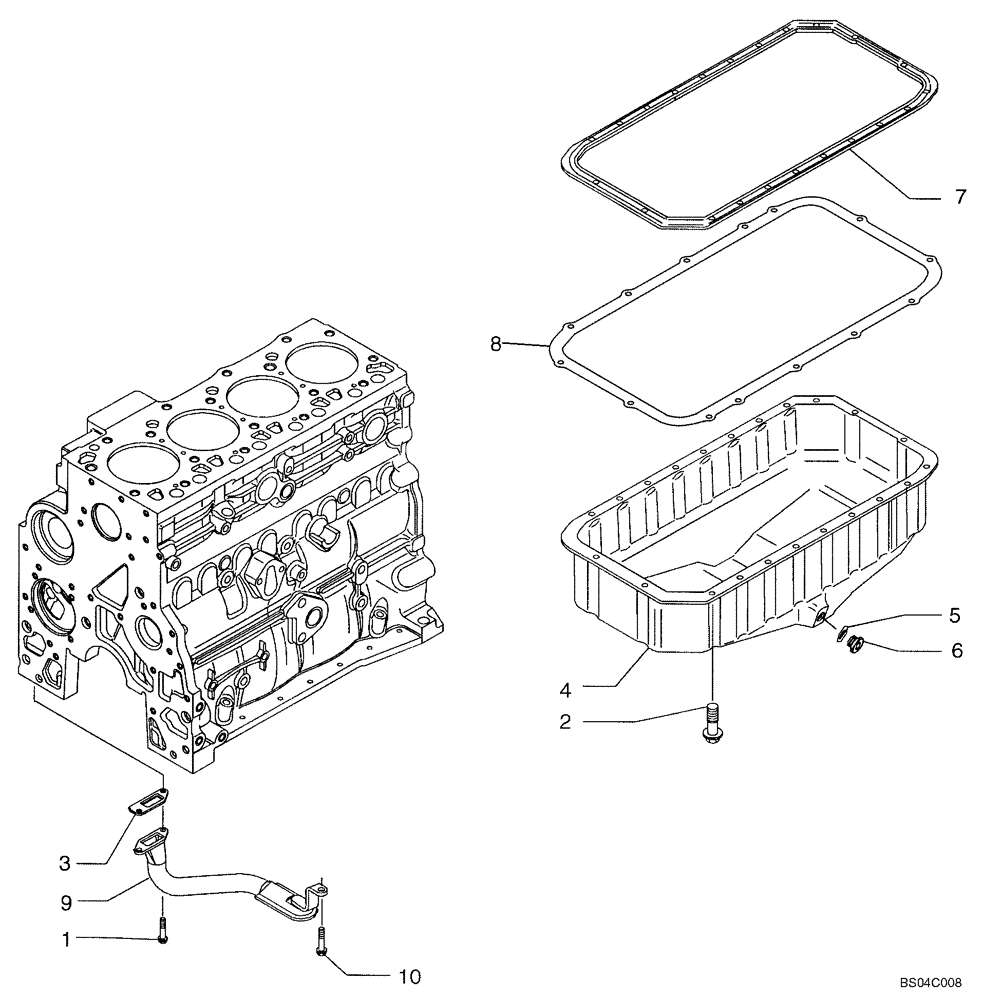

Запчасти Case IH 430 (02-11) - OIL PUMP, PAN (02) - ENGINE

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2853048

ENGINE OIL PAN

1шт.

5

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

Does Not Include Seal, Purchase Seal Separately

1шт.

7

4897877

OIL PAN GASKET SET

1шт.

8

4897876

SPACER

1шт.

9

2853050

PIPE

Oil Suction; Includes Screen Which Is Not Serviced Separately

1шт.

10

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.
