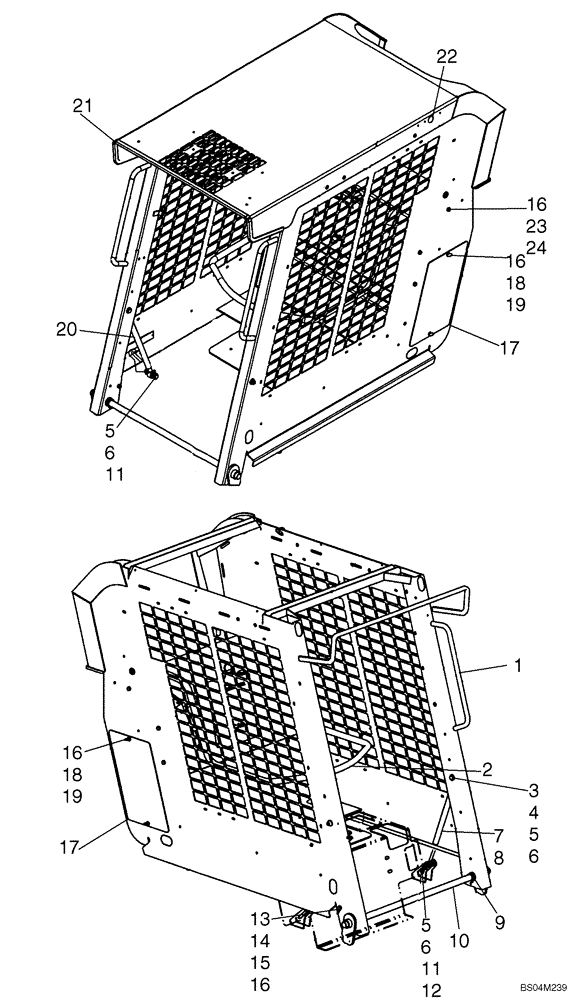

Запчасти Case IH 430 (09-23) - FRAME AND SEAT BAR (09) - CHASSIS

87452374

SVC MAINTENANCE KIT

ROPS Kit; Order From Wholegoods; Includes Ref 1 Frame, Plus The Following Decals, 433957A1, 87438592, 382622A1; Decal 251745A1 No Longer In Kit; See Decal Pages For Illustrations

1шт.

1

NSS

NOT SOLD SEPARAT

87457561 ROPS Frame Only; For Service Order 87452374 ROPS Service Kit

1шт.

2

87417620

BAR

Seat Restraint

1шт.

3

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

4

254698A1

SPACER

Pivot Assist Helper Spring

2шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

7

376669A1

GAS STRUT

Pivot Assist

1шт.

8

282002A2

GAS STRUT

Pivot Assist; Models With Deluxe Heater

1шт.

9

827695C1

CIRCLIP

1 in

2шт.

10

373836A1

PIVOT PIN

No Longer Used, Order 87629753

1шт.

10

87629753

PIN,25.4mm OD x 871mm L

1шт.

11

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

12

254697A1

SPACER

Pivot Assist Helper Spring

2шт.

13

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

14

391449A1

SPACER

ROPS Latch

1шт.

15

9628098

NUT,M8 x 1.25, Cl 10

1шт.

16

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

13шт.

17

87460732

PANEL

Access

2шт.

86625127

PLUG,Dome, .375" hole, Nylon

Use on 87460732 Access Panel

4шт.

18

408117A2

THUMB SCREW,M8 x 1.25 x 15mm

M8

4шт.

19

442856A1

SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk

M8

4шт.

20

282002A2

GAS STRUT

Pivot Assist

1шт.

21

378351A1

PROTECTION STRIP

Canopy Edge

1шт.

22

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

23

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

24

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm dia. Lexan

4шт.

275618

PLUG,Dome, .250" hole, Nylon

Replaces 353-400

10шт.
