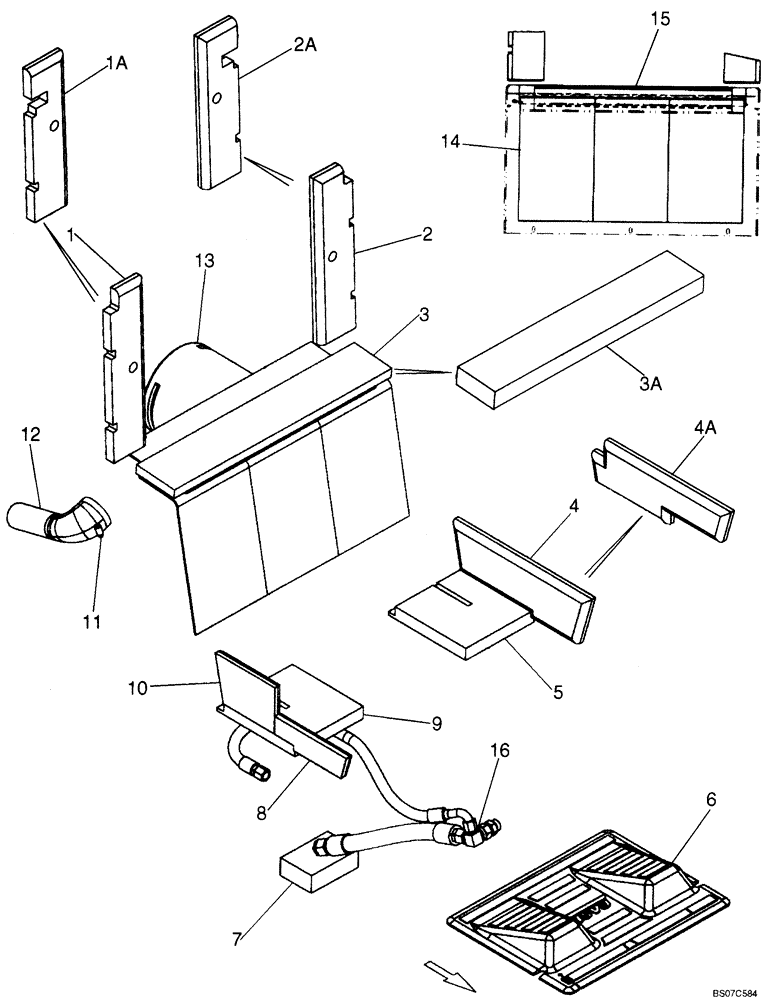

Запчасти Case IH 430 (09-22C) - NOISE CONTROL, NORTH AMERICAN; IF USED (09) - CHASSIS

1

402043A1

PAD

Rear Window Right; If Used

1шт.

1a

87592633

FOAM

Rear Window Right; If Used

1шт.

2

402040A1

PAD

Rear Window Left; If Used

1шт.

2a

87592630

FOAM

Rear Window Left; If Used

1шт.

3

402045A1

PAD

Rear Window Top; If Used

1шт.

3a

87618692

FOAM

Rear Window Top; If Used

1шт.

4

402041A1

PAD

Lower Left Hand Side Screen; If Used

1шт.

4a

87619305

FOAM

Lower Left Hand Side Screen; If Used

1шт.

5

429673A1

INSULATING PANEL

Left Hand Seat Plate

1шт.

6

87461561

FLOOR MAT

1шт.

7

87353205

PAD

Right Tower

1шт.

8

434733A1

PAD

Right Hand Lower Side Screen

1шт.

9

429672A1

INSULATING PANEL

Right Hand Seat Plate

1шт.

10

402042A1

PAD

Lower Right Hand Side Screen

1шт.

11

86633353

HOSE CLAMP,70mm - 92mm

1шт.

12

87573940

HOSE

Hose Inlet Extension; Replaces 315522A1

1шт.

13

87369267

GUARD

Muffler Wrap

1шт.

13

87541360

MUFFLER

Muffler Wrap; Replaces 87369267; If Used

1шт.

13

87588078

FOAM

Muffler Wrap; If Used; Secure With Twist Ties 87393399

1шт.

87393399

SPRING

Twist Ties

9шт.

14

318165A1

INSULATOR

Sound Dampening, Upper

3шт.

15

318166A1

INSULATOR

Sound Dampening, Lower

1шт.

16

REF

INSTRUCTION

See Figure 06-09B

1шт.

87541409

SERVICE KIT

Incl. 1 - 15 and Figure 06-03A

1шт.

87541410

SERVICE KIT

Incl. 1 - 15, Figure 06-03A and Instructions

1шт.
