(09-13C) - CONTROLS - LOADER AND GROUND DRIVE (ROUND LINKAGE LINKS, IF USED, SEE FIGURE 09-13B REF 1, 2)

Запчасти Case IH 430 (09-13C) - CONTROLS - LOADER AND GROUND DRIVE (ROUND LINKAGE LINKS, IF USED, SEE FIGURE 09-13B REF 1, 2) (09) - CHASSIS

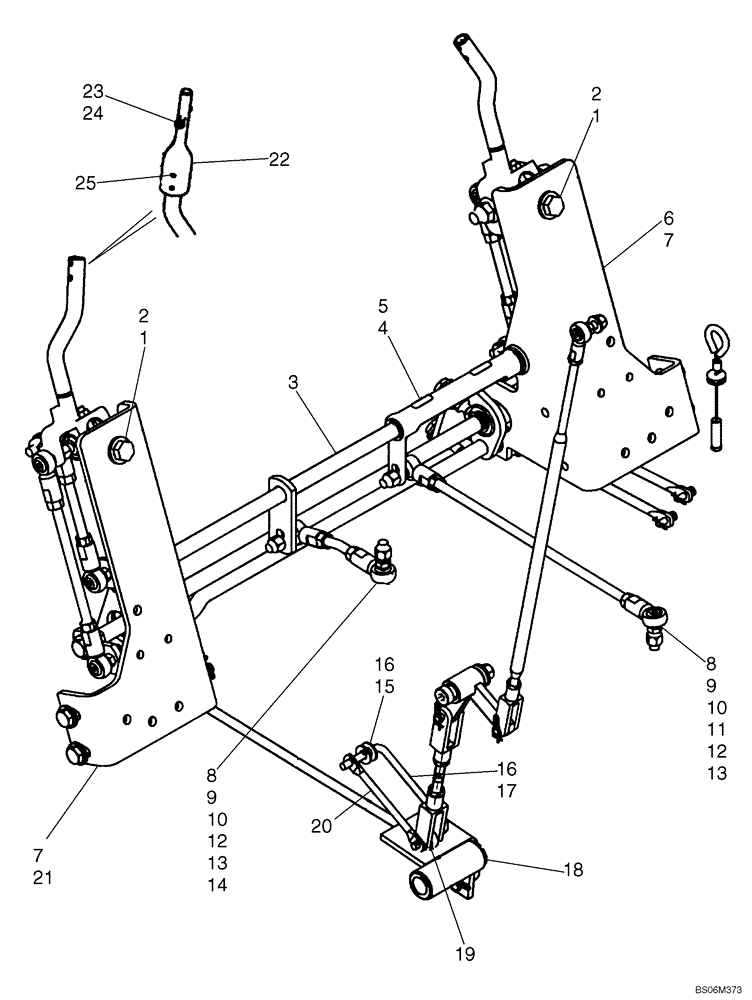

Схема запчастей Case IH 430 - (09-13C) - CONTROLS - LOADER AND GROUND DRIVE (ROUND LINKAGE LINKS, IF USED, SEE FIGURE 09-13B REF 1, 2) (09) - CHASSIS
14
10
8
22
8
2
7
16
12
2
10
12
20
23
5
13
21
25
18
9
15
13
19
7
24
9
1
3
6
16
11
17
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Assy With Round Linkage Links, See Figure 09-13B Ref 1, 2

1шт.

1

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

2шт.

2

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

3

87458514

ROD ASSY.

Drive Control

1шт.

4

367585A2

CRANK

1шт.

5

409844A1

BEARING, NEEDLE,Needle, 15.88mm ID x 20.64mm OD x 15.9mm W

5/8 Shaft

2шт.

6

87458519

FRAME

Control Right Hand

1шт.

7

87458664

BALL BEARING,15 mm ID x 32 mm OD x 9 mm

2шт.

8

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

9

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

10

80855

NUT,Hex, 3/8" - 24

2шт.

11

435565A1

ROD

1шт.

12

87030547

NUT,3/8" - 24, LH Thd, Gr 5

2шт.

13

86509310

NUT,3/8" - 24, Gr 5

2шт.

14

87460100

ROD

Linkage

1шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

86523954

COTTER PIN,3/32" x 5/8"

2шт.

17

393968A1

ROD

Control Link

1шт.

18

D95097

RING, SNAP

RING SNAP 3/4 in

1шт.

19

379344A3

BRAKE CAM

1шт.

20

393969A1

ROD

Control Link

1шт.

21

87458521

FRAME

Control Left Hand

1шт.

22

87564037

HANDLE

Used With Handles On 04-12A, 04-13A

1шт.

23

87564744

Screw, Hex Soc #10-32 x 5/8; Used With Handles On 04-12A, 04-13A

4шт.

24

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

Used With Handles On 04-12A, 04-13A

4шт.

25

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

Set Screw, #10-32 x 1/4; Used With Handles On 04-12A, 04-13A

4шт.
