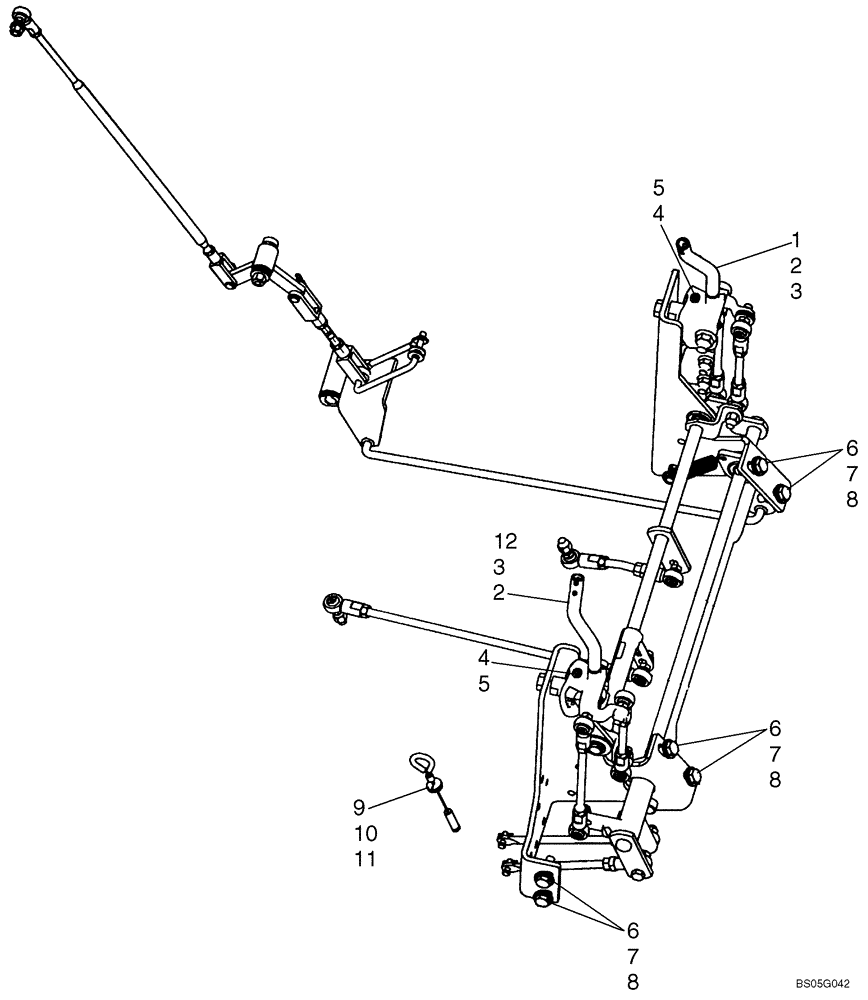

Запчасти Case IH 430 (09-13A) - CONTROLS - LOADER AND GROUND DRIVE (ROUND LINKAGE LINKS, IF USED, SEE FIGURE 09-13B REF 1, 2) (09) - CHASSIS

Assy With Round Linkage Links, See Figure 09-13B Ref 1, 2

1шт.

1

87458673

LEVER

Control Left Hand

1шт.

2

87458667

FLEXIBLE JOINT

2шт.

3

87033645

FLANGE NUT,Flg, 1/2"-20

2шт.

4

405103A1

SET SCREW,Hex Skt, M6 x 25mm, Oval Pt

M6 x 1 x 25

4шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

8

411345A1

LOCK NUT

M10

6шт.

9

87036285

GROMMET,0.125" ID x 0.750" OD x 0.312" Thk

1шт.

10

87432135

CABLE

Override

1шт.

10

87462741

CABLE,124mm L

Override; Replaces 87432135

1шт.

11

87825

NUT,#10-32

1шт.

12

87458670

LEVER

Control Right Hand

1шт.
