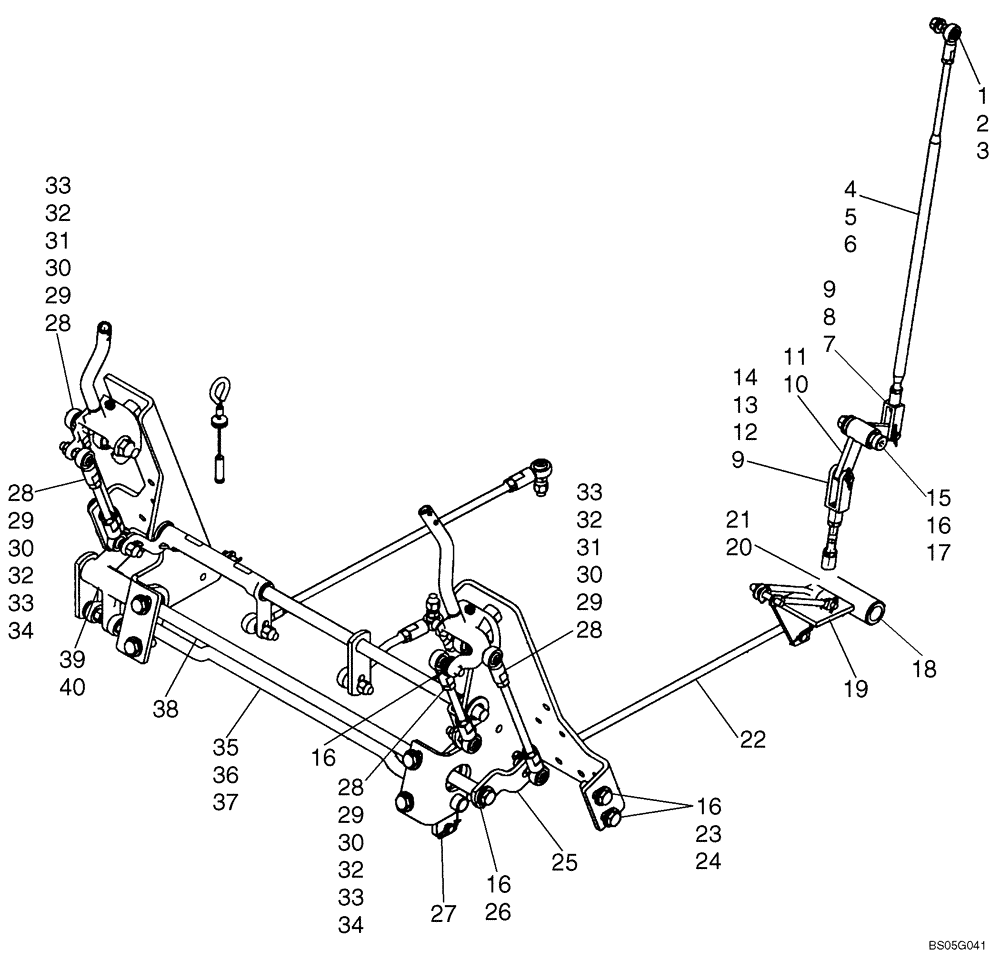

Запчасти Case IH 430 (09-13) - CONTROLS - LOADER AND GROUND DRIVE (ROUND LINKAGE LINKS, IF USED, SEE FIGURE 09-13B REF 1, 2) (09) - CHASSIS

Assy With Round Linkage Links, See Figure 09-13B Ref 1, 2

1шт.

1

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16-24

1шт.

2

87362

WASHER,5/16" SAE

1шт.

3

87034527

LOCK NUT,Prev Torque, 5/16" - 24, Type Non-Directional

Nut; 5/16

1шт.

4

366266A2

ROD

Seat Bar Brake

1шт.

5

87034513

JAM NUT,5/16" - 24, LH Thd, 0.195" High, Gr 5

Nut; 5/16-24 LH

1шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

7

87034520

Clevis; 5/16-24

1шт.

8

86629892

CLEVIS PIN,5/16" OD x 0.940" L

Pin, Clevis; 5/16 x .940

1шт.

9

417860A1

COTTER PIN

2шт.

410056A2

ROD

Brake Contact

1шт.

10

367689A1

PIVOT ASSY.

Brake Lock

1шт.

11

368972A1

NYLON BEARING,12.88 mm ID x 22.2 mm OD x 19.1 mm

2шт.

12

410055A1

CLEVIS

3/8-24

1шт.

13

87034534

CLEVIS PIN

Pin, Clevis; 5-16 x 1.125 in

1шт.

14

87034514

JAM NUT

Nut; 3/8-24 LH

1шт.

15

121-438

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1.75"

1шт.

16

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

17

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

1шт.

18

367669A1

BUSHING,19.62mm ID x 22.58mm OD x 25.4mm L

2шт.

19

87019716

CRANK

1шт.

20

410054A1

CLEVIS

3/8-24

1шт.

21

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

.375-24

1шт.

22

87461327

ROD

1шт.

23

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

24

411345A1

LOCK NUT

M10

2шт.

25

87458510

ARM

1шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

27

417861A1

RING

2шт.

28

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

4шт.

29

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

4шт.

30

80855

NUT,Hex, 3/8" - 24

8шт.

31

180682A1

STEM

Rod Linkage

2шт.

32

87030547

NUT,3/8" - 24, LH Thd, Gr 5

.375-24

4шт.

33

86509310

NUT,3/8" - 24, Gr 5

4шт.

34

249367A2

ROD

Rod Linkage

2шт.

35

87458511

SHAFT

Control

1шт.

36

87458665

BALL BEARING,17 mm ID x 35 mm OD x 10 mm

2шт.

37

367582A1

BUSHING,15.88mm ID x 19.05mm OD x 19.1mm L

2шт.

38

87458517

ROD ASSY.

Loader Control

1шт.

38

87613733

ROD

Loader Control; Replaces 87553036, 87458517

1шт.

39

385783A3

CRANK

1шт.

40

409845A1

BEARING, NEEDLE,Needle, 19.05mm ID x 25.4mm OD x 15.9mm W

3/4 Shaft

2шт.
