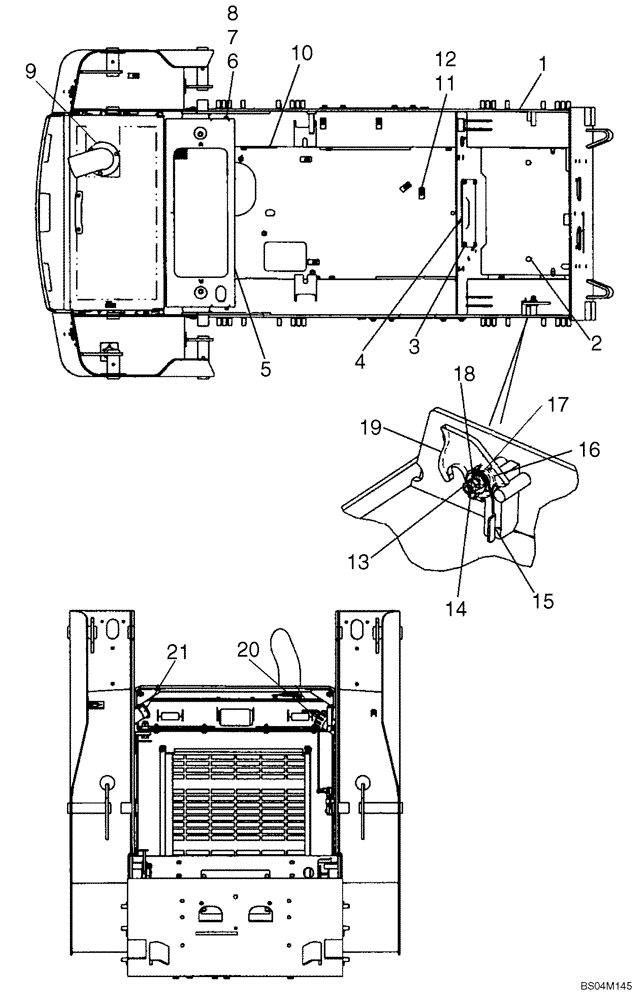

Запчасти Case IH 430 (09-10) - CHASSIS (09) - CHASSIS

87452373

SERVICE KIT

Chassis Kit; Order From Wholegoods; Incl. Chassis Frame, Fuel/Hydraulic Fill Caps, Fuel Sender/Gasket; Ref 1, 10, 20, 21 on Figure 09-10; Ref 1, 9, 11 on Figure 09-11; Ref 4 - 6 on Figure 04-06

1шт.

1

87402603

FRAME

Chassis Frame; Order From Wholegoods; Used in Production

1шт.

2

87454385

PLATE ASSY.

Floor

1шт.

3

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

4

87430679

PLATE

1шт.

5

87457978

PANEL

Heat Shield Extension

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

NSS

NOT SOLD SEPARAT

Hood, Engine; See Figure 09-16

1шт.

10

86991034

PLUG

Axle Access

4шт.

11

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

12

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

13

294943A1

STUD

1шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

294911A2

HOOK

Plate

1шт.

16

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

17

294967A1

WASHER

1шт.

18

278332A1

SPRING WASHER

Spring

1шт.

19

390516A3

LATCH

Plate; ROPS Latch

1шт.

20

257448A1

CAP

Oil Filler; Incl. 292259A1

1шт.

292259A1

SEAL

Filler Cap

1шт.

21

H436887

CAP

Fuel; Non-Locking; If Used

1шт.

21

108925A1

FILLER CAP

Fuel; Locking; If Used

1шт.
