Запчасти Case IH 430 (08-18) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS

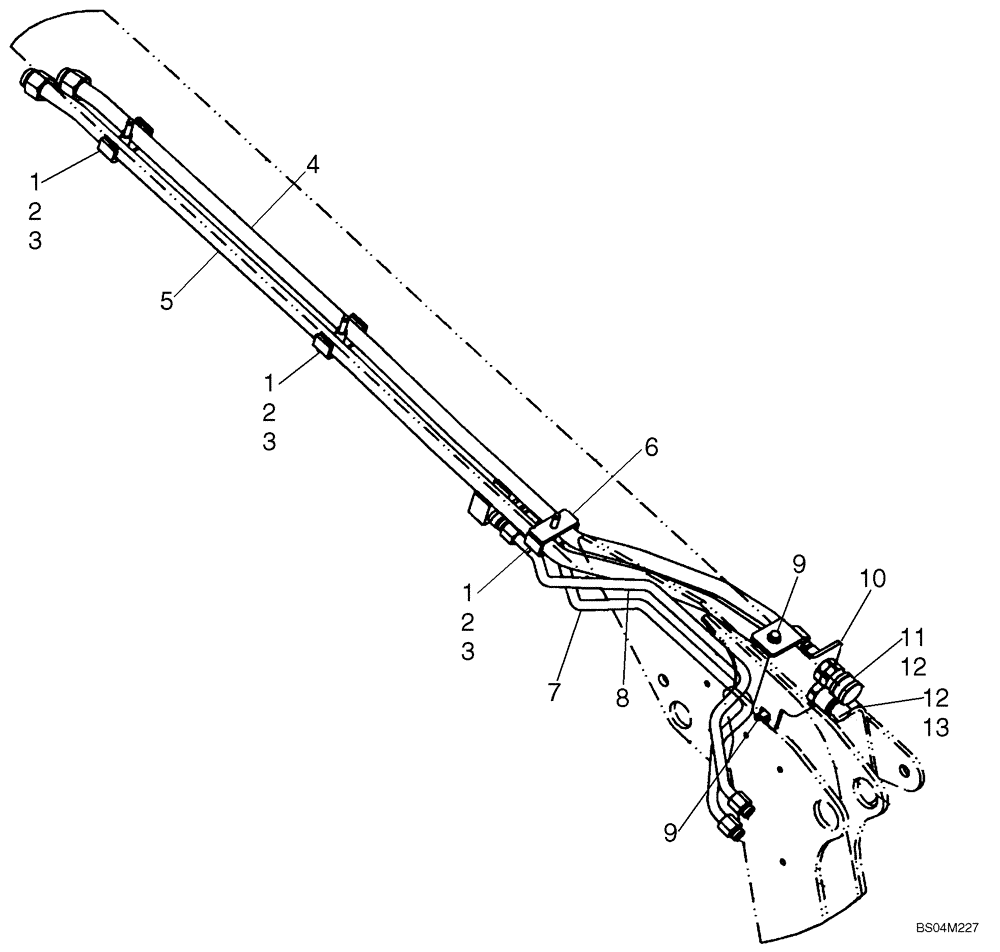

Схема запчастей Case IH 430 - (08-18) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS
12
10
1
2
5
2
3
4
9
9
8
11
6
2
1
7
13
12
3
3
1

Артикул

Название

Примечание

Количество

87571188

KIT

High Flow Kit; Incl. 1 - 13, And Figures 06-01A, 08-17, 08-19

1шт.

1

87020743

BRACKET

3шт.

2

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

3

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3/8 x 2.5

3шт.

4

87023470

HYD TUBE,25.40 mm OD

1шт.

5

87023469

TUBE,25.40 mm OD

1шт.

6

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

7

87023472

HYD TUBE,15.88 mm OD

1шт.

8

87023471

HYD TUBE,15.88 mm OD

1шт.

9

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

10

87023398

BRACKET

1шт.

11

87022671

COUPLING, QUICK, FEM

5/8, Female; Mating Conector For 87022671 (Female) Is 395268A1 (Male)

1шт.

12

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

1-5/16

2шт.

13

87022672

QUICK MALE COUPLING

5/8, Male; Mating Connector For 87022672 (Male) Is 395267A1 (Female)

1шт.

Выбрано товаров: 14
