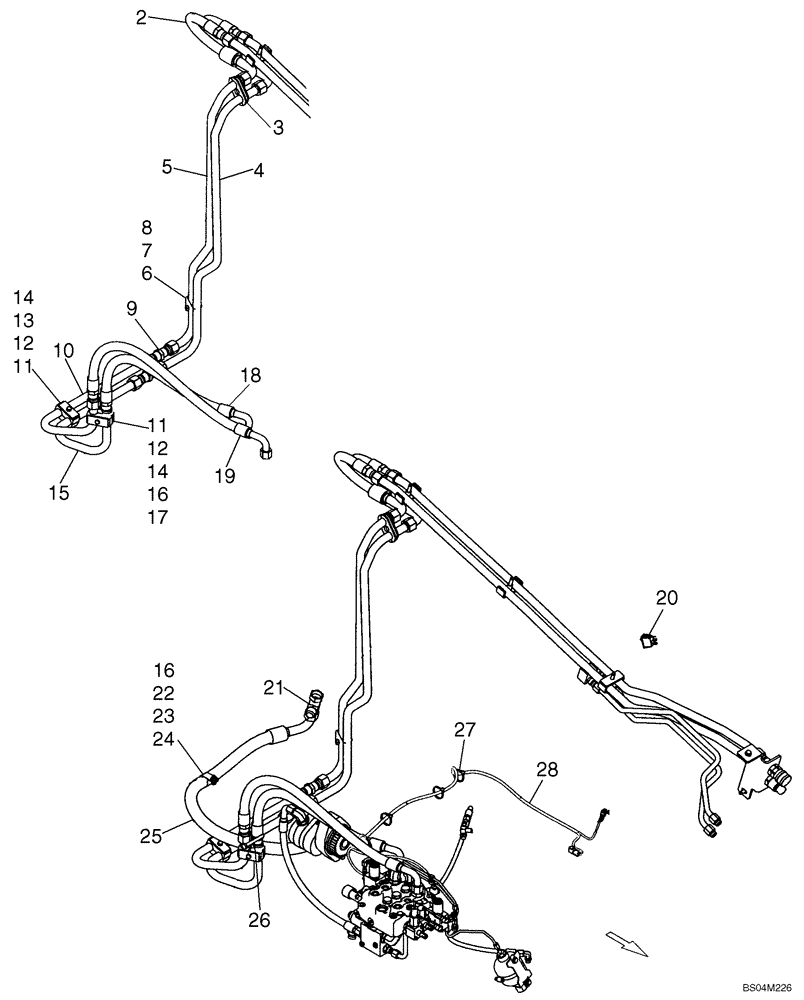

Запчасти Case IH 430 (08-17) - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS

87571188

KIT

High Flow Kit; Incl. 2 - 28, And Fig. 06-01A, 08-18, 08-19

1шт.

REF

INSTRUCTION

See Figure 08-18

1шт.

2

87020048

HOSE,19.05mm ID x 675mm L

2шт.

3

87017999

SUPPORT

2шт.

4

87026697

HYD TUBE,25.40 mm OD

1шт.

5

87026698

HYD TUBE,25.40 mm OD

1шт.

6

87020743

BRACKET

1шт.

7

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

8

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

9

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

2шт.

10

87026695

TUBE,25.40 mm OD x 556.80, 146.80 mm L

1шт.

11

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

14

80681

LOCK WASHER,5/16"

2шт.

15

87026696

HYD TUBE,25.40 mm OD x 439.50, 190.20 mm L

1шт.

16

9628098

NUT,M8 x 1.25, Cl 10

2шт.

17

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

18

87454000

HOSE ASSY.

1шт.

19

87453999

HOSE ASSY.

1шт.

20

87414769

SWITCH

Rocker, High Flow

1шт.

21

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

22

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

24

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

25

87460222

HOSE

Suction

1шт.

26

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

28

87447970

HARNESS

Electro-Hydraulic Auxiliary

1шт.
