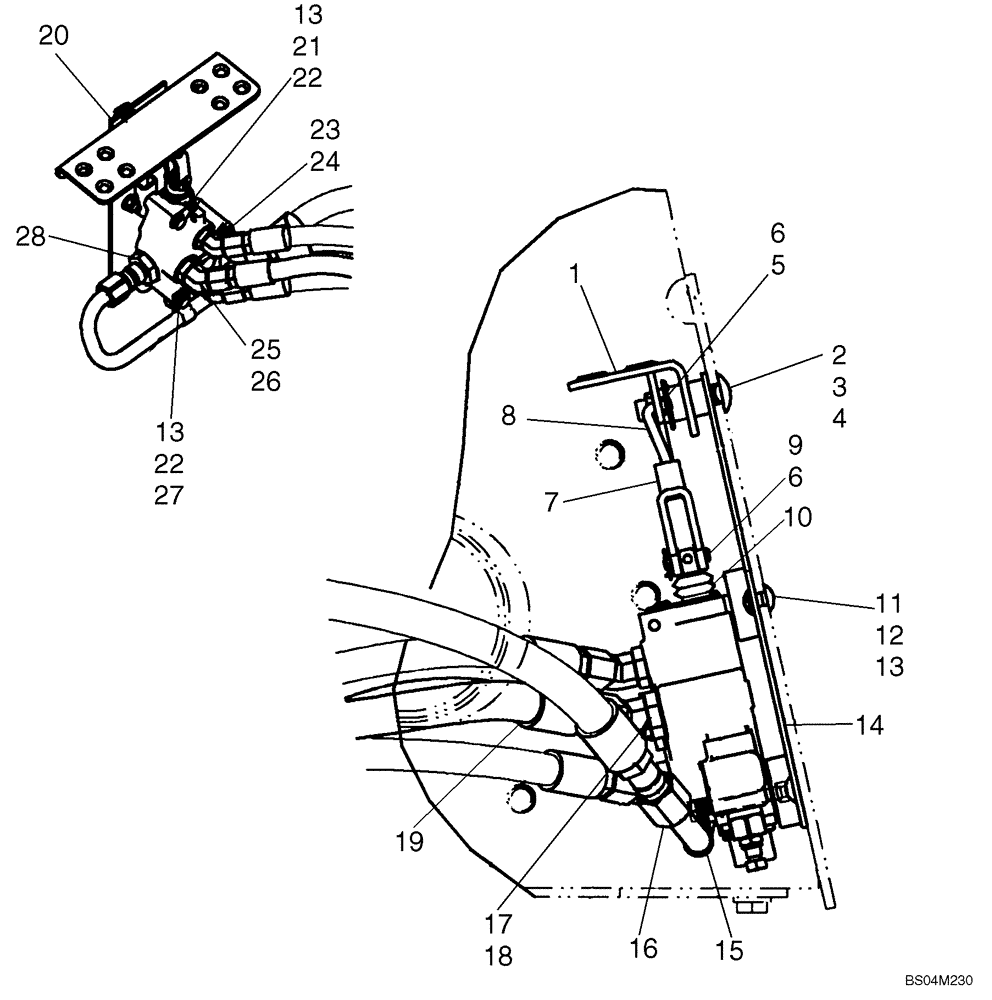

Запчасти Case IH 430 (08-14) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

87423833

PEDAL ASSY.

If Used

1шт.

1

87741562

PEDAL

1шт.

2

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

3

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

6

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

87444369

LINKAGE

Incl. 7, 8

1шт.

7

87444160

CLEVIS

1шт.

8

87444368

LINK

1шт.

9

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

10

87017348

VALVE

Secondary Auxiliary; See Figure 08-16

1шт.

11

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

12

9628098

NUT,M8 x 1.25, Cl 10

1шт.

13

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

3шт.

14

87447969

PLATE ASSY.

Valve Mounting Plate

1шт.

15

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87445489

HYD TUBE,15.88 mm OD

1шт.

17

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl.18

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

87445548

HOSE ASSY.

Inlet

1шт.

20

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

23

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Ref 24

2шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

Incl. 26

1шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

28

129878A1

FITTING

Power Beyond; Incl. 29 - 31

1шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Not Illustrated

1шт.

30

A52424

BACK-UP RING

Not Illustrated

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Illustrated

1шт.
