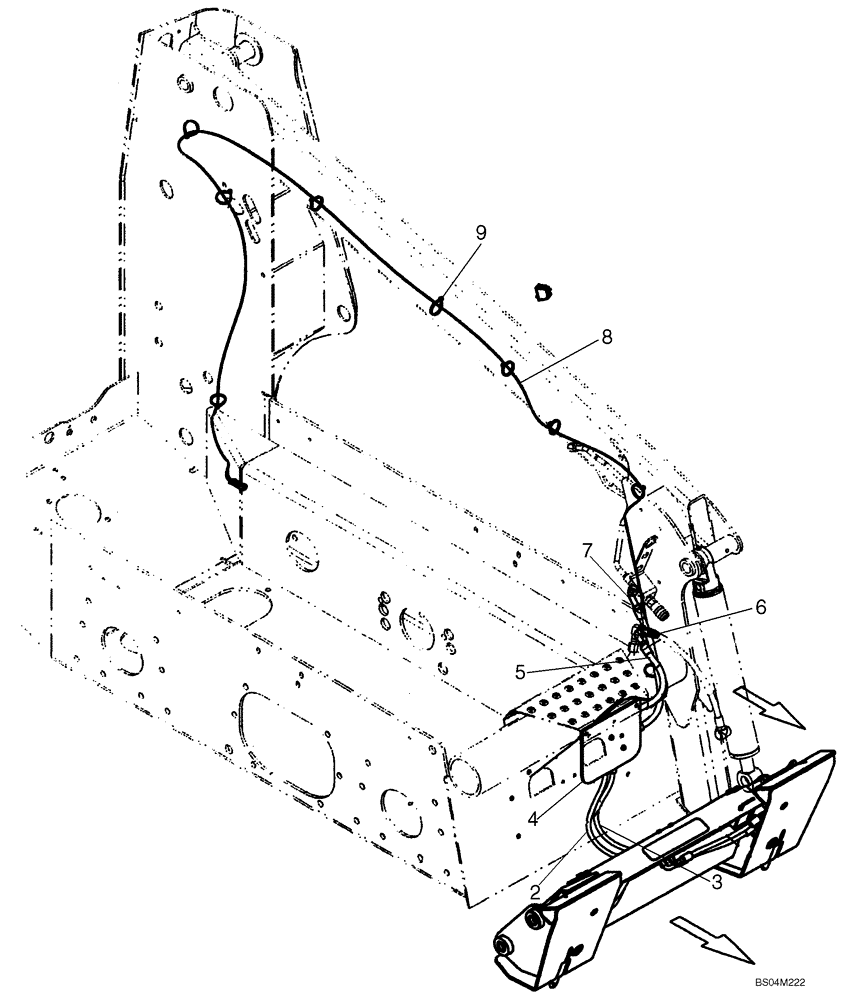

Запчасти Case IH 430 (08-06) - HYDRAULICS - COUPLER SYSTEM, IF USED (08) - HYDRAULICS

1

REF

INSTRUCTION

Coupler Frame; See Figure 09-04; See Figure 08-07

1шт.

2

87440564

HOSE ASSY.,6.35mm ID x 690mm L

Step To Coupler

1шт.

3

87440565

HOSE ASSY.,6.35mm ID x 720mm L

Step To Coupler

1шт.

4

87423807

PLATE

1шт.

5

87440563

HOSE ASSY.

Supply

1шт.

6

87426293

TEE

1/2 x 1/2 x 1/2

1шт.

7

87413436

HOSE ASSY.

Case Drain

1шт.

8

87446983

WIRE HARNESS

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

9шт.

284152A1

DECAL

2шт.

87042143

SWITCH

Loader Lock

1шт.
