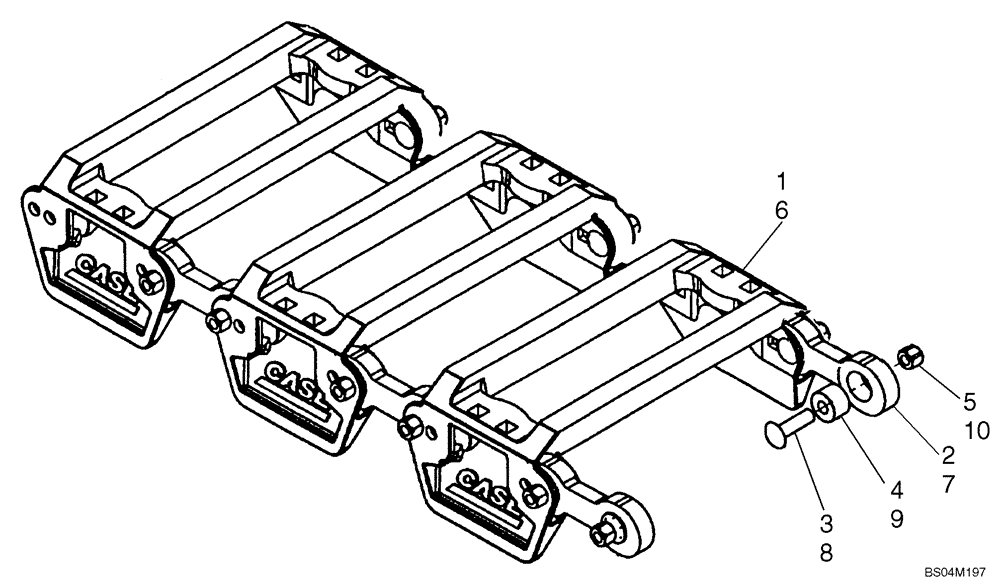

Запчасти Case IH 430 (06-27) - TRACK - STEEL (06) - POWER TRAIN

REF

INSTRUCTION

USED WITH 10 x 16.5 INCH TIRE

1шт.

451666A1

TRACK ASSY

Incl. 1 - 5; Order Components

2шт.

1

365934A1

PAD

Steel Casting

19шт.

2

365261A1

LINK

Connector

38шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

76шт.

4

365260A1

BUSHING

76шт.

5

231-4138

LOCK NUT,1/2"-13, GB

76шт.

REF

INSTRUCTION

USED WITH 12 x 16.5 INCH TIRE

1шт.

365917A1

ASSEMBLY

Incl. 6 - 10; Order Components

2шт.

6

365259A1

PAD

Steel Casting

19шт.

7

365261A1

LINK

Connector

38шт.

8

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

76шт.

9

365260A1

BUSHING

76шт.

10

231-4138

LOCK NUT,1/2"-13, GB

76шт.
