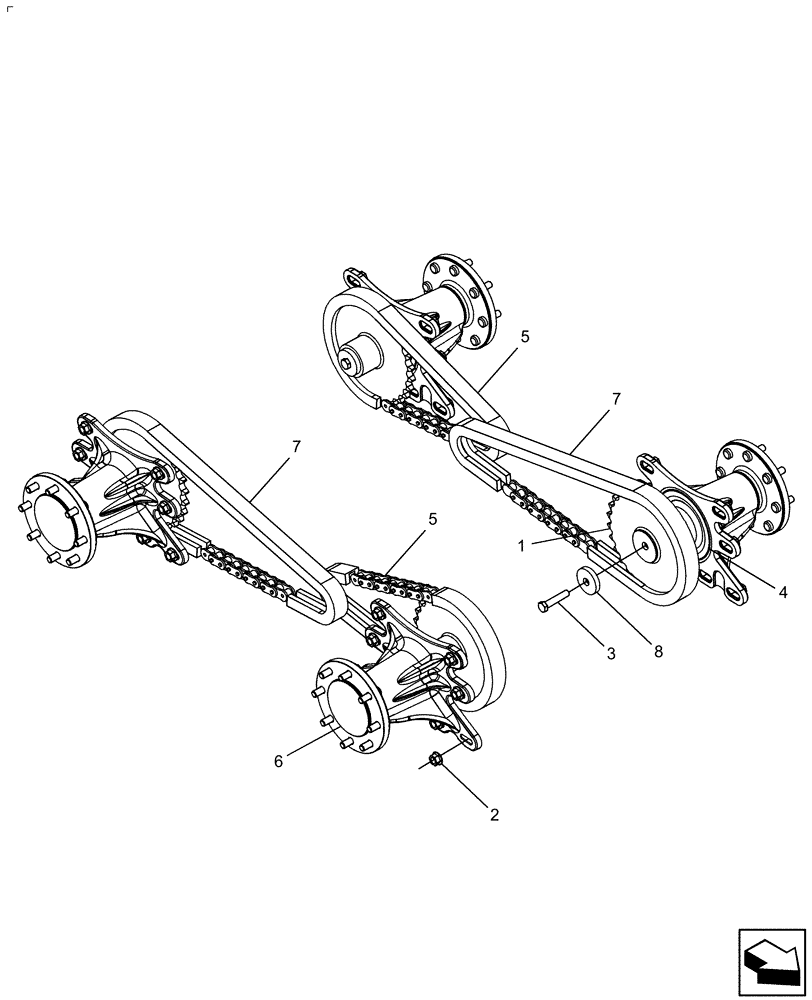

Запчасти Case IH 430 (06-24) - DRIVE LINE (06) - POWER TRAIN

1

84172878

DRIVEN SPROCKET

28T

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

3

86577946

BOLT,Hex, M16 x 80mm x 10.9

4шт.

4

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

5

87428143

CHAIN (CE)

#100, 46 Pitch

2шт.

6

338552A3

MAIN SHAFT,Assembly

4шт.

7

364181A1

CHAIN (CE)

#100 HS, 60 Pitch

2шт.

8

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.
