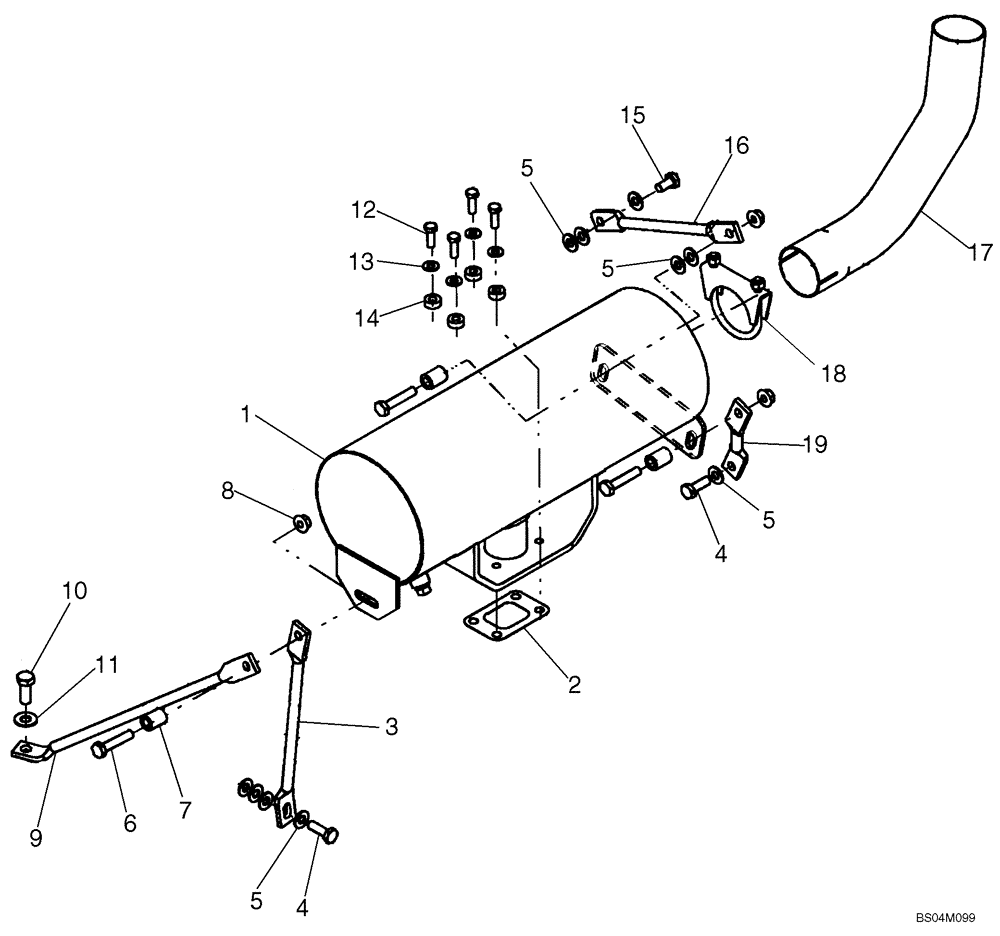

Запчасти Case IH 430 (02-03) - EXHAUST SYSTEM (02) - ENGINE

1

87040452

MUFFLER

1шт.

2

87021302

GASKET,0.43mm Thk

Muffler

1шт.

3

87043605

ROD

Muffler Support

1шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

6

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

7

256690A1

SPACER

3шт.

8

411345A1

LOCK NUT

M10

3шт.

9

87040817

ROD

Muffler Support

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

14

86633393

SPACER

If Used

4шт.

14

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

If Used

4шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

16

87040820

ROD

Muffler Support

1шт.

17

87461608

TUBE,270.46, 252 mm L

Exhaust Tube; Replaces 87041462; If Used

1шт.

17

87584270

EXHAUST SYSTEM PIPE

If Used

1шт.

18

87461995

CLAMP,68mm ID, Muffler

Replaces A13240

1шт.

19

87046105

ROD

Muffler Support

1шт.

87588078

FOAM

Muffler Wrap, If Used; European Models; Installs With (9) 87393399 Twist Ties

1шт.

87393399

SPRING

Twist Ties

9шт.
