(06-16) - PUMP, GEAR (WITHOUT HIGH FLOW)

Запчасти Case IH 430 (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN

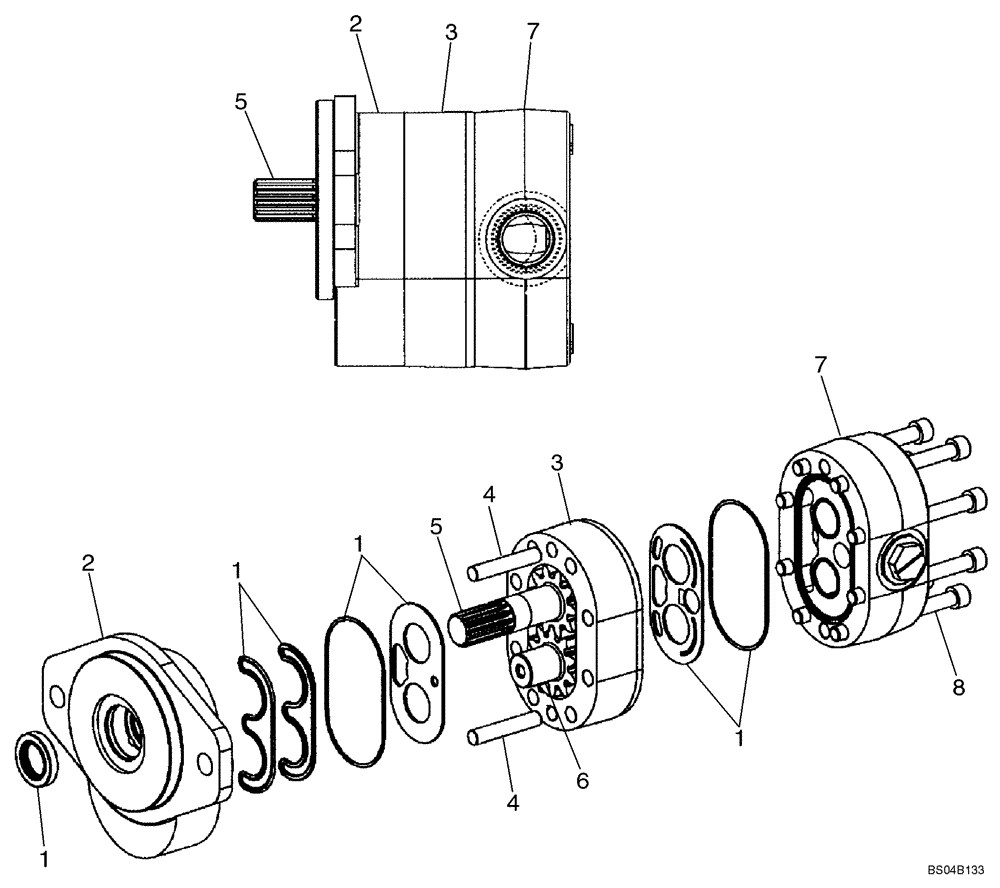

Схема запчастей Case IH 430 - (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN
1
1
4
3
2
6
8
2
3
7
4
5
1
7
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8; Models Without High Flow

1шт.

87024695R

430 NA N7M479683; 430 EU N7M479546 (2/05-)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
