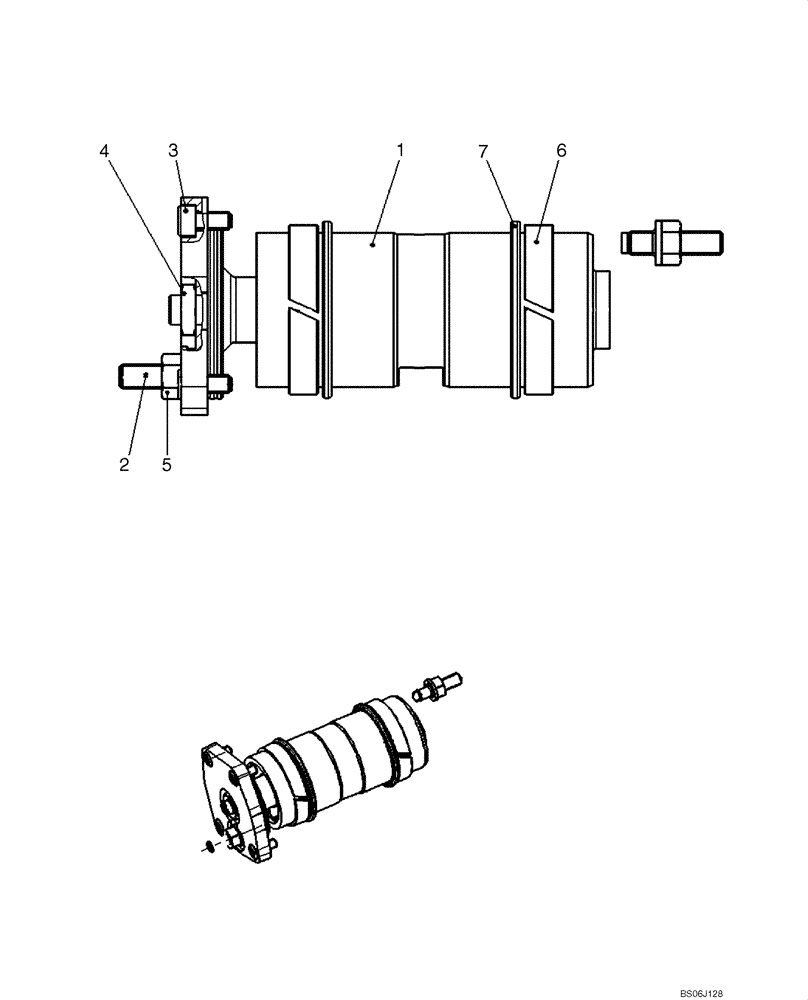

Запчасти Case IH 430 (06-11F) - PUMP, TANDEM - CONTROL, HYDRAULIC (87546976) (06) - POWER TRAIN

87043500

PUMP,46 CC

A22 Double Piston Pilot Control; See Figure 06-11 - 06-11G

1шт.

87043500R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87043500C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87553601

CONTROL

Control, Hydraulic; Incl. 1 - 7

1шт.

1

87597272

PISTON

Positioning Piston, Complete

1шт.

2

87597274

PIN

Threaded Pin

2шт.

3

87597275

HEX SOC SCREW

Socket Head Screw

4шт.

4

87597276

NUT

Hexagon Nut

1шт.

5

87597277

LOCK NUT

Seal, Lock Nut

2шт.

6

87597281

GUIDE RING

2шт.

7

87597282

SERVICE KIT

Rod Seal Kit

2шт.
