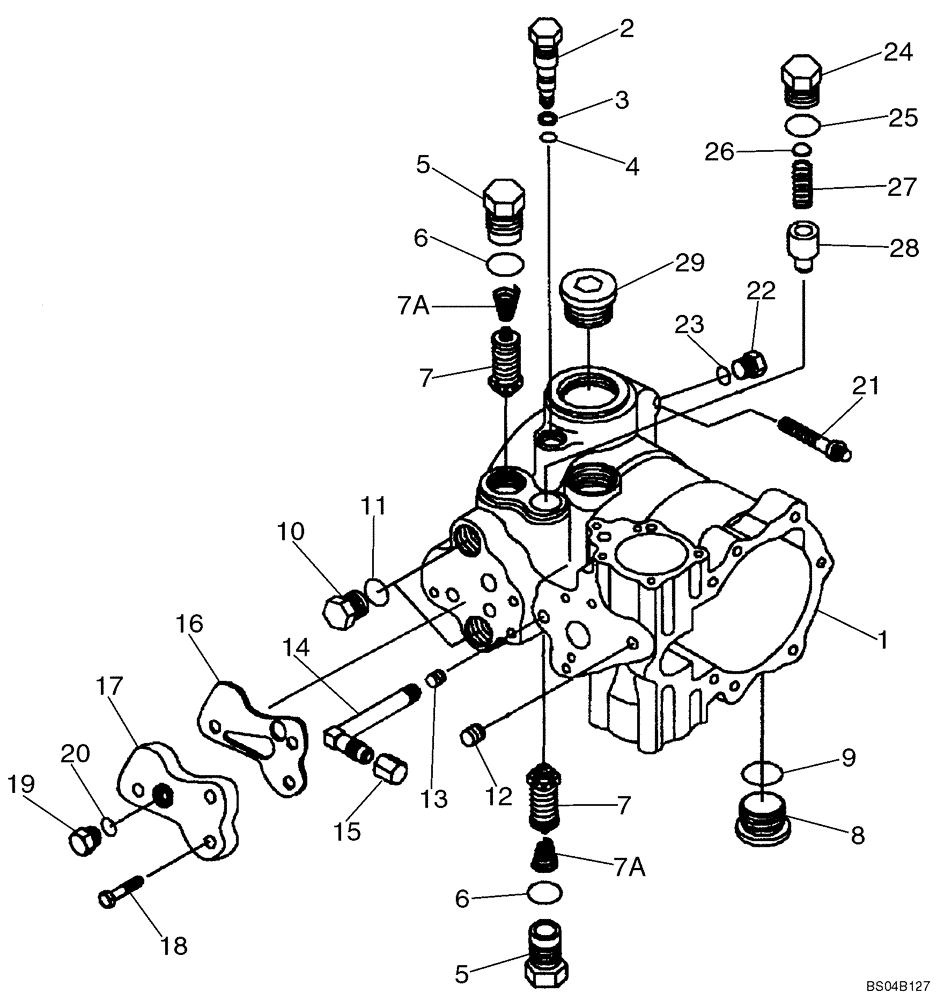

Запчасти Case IH 430 (06-10) - PUMP, TANDEM (87043500) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
*
Front Pump
1шт.
87043500
PUMP,46 CC
Incl. 1 - 29; Incl. Parts On Figure 06-10 - 06-10E
1шт.
87043500R
REMAN-HYD PUMP
REMANUFACTURED HYDRAULIC PUMP
1шт.
87043500C
CORE-HYDRAULIC PUMP
Return Number, HYDRAULIC PUMP
1шт.
1
402364A1
HOUSING
1шт.
2
87039612
BY-PASS VALVE
Incl. Ref 3, 4
1шт.
3
S99877
BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk
1шт.
4
86993475
O-RING
3/8 ID x 1/16; Included in 140008A1 Seal Kit
1шт.
N14848
VALVE, PRESSURE RELI
EF Incl. 5 - 7A
2шт.
5
NSS
NOT SOLD SEPARAT
Plug
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
7
NSS
NOT SOLD SEPARAT
Valve, Relief
1шт.
7a
86993468
SPRING
1шт.
8
9841223
PLUG,1-1/16" - 12 ORB
Incl. 9
2шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
76349
PLUG,9/16" - 18 ORB
Incl. 11
2шт.
12
F23137
PLUG
1шт.
11
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
13
86993479
PIPE PLUG,1/16" - 27
Pipe
1шт.
14
86993480
ELBOW
1шт.
15
86993467
CAP
1шт.
16
303709A1
GASKET
Filter Adapter; Included in 140008A1 Seal Kit
1шт.
17
101462A1
ADAPTER
Suction Line Filter
1шт.
18
26-516
BOLT,Hex, 5/16" - 18 x 1", Gr 8
3шт.
19
76349
PLUG,9/16" - 18 ORB
Incl. 20
1шт.
140008A1
GASKET KIT
Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 3, 4, 6, 16, 25
1шт.
20
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
21
166-89
12 PT SCREW,1/2" - 13 x 2", Gr 8
2шт.
22
9672438
PLUG,7/16" - 20 ORB
Incl. 23
1шт.
23
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
24
87039611
PLUG
Charge Relief; Incl. 25
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
26
H407767
KIT
Shim
1шт.
27
244898A1
SPRING
1шт.
28
V38371
VALVE
Charge Relief
1шт.
29
NSS
NOT SOLD SEPARAT
Plug
1шт.
Выбрано товаров: 36
