Запчасти Case IH 430 (06-07) - HYDROSTATICS, HOSES (430 WITH PILOT CONTROL) (06) - POWER TRAIN

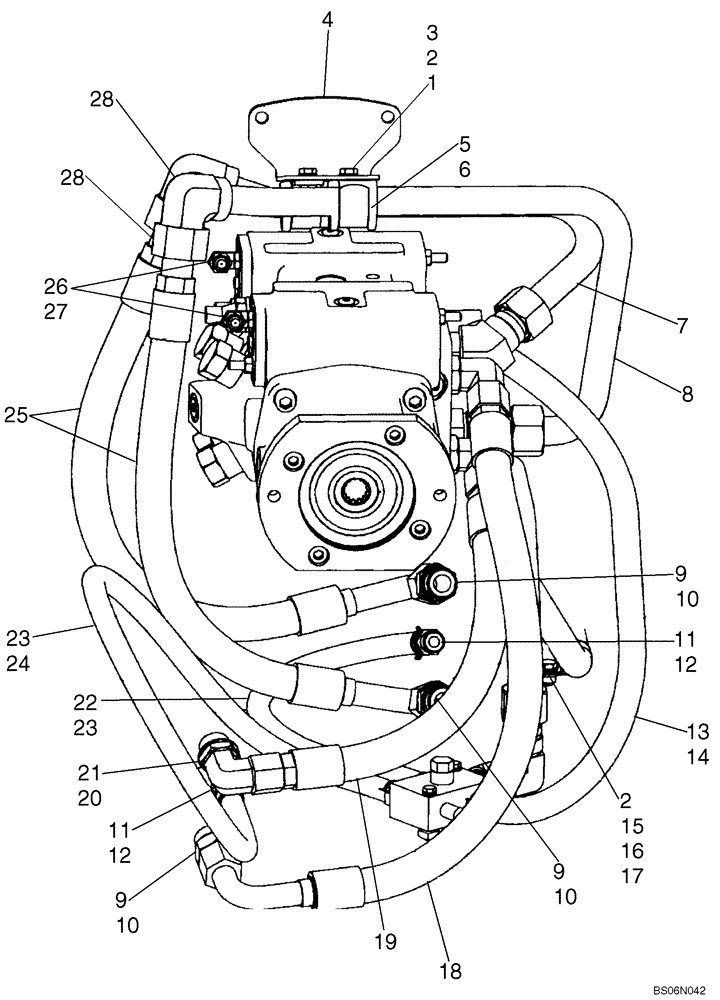

Схема запчастей Case IH 430 - (06-07) - HYDROSTATICS, HOSES (430 WITH PILOT CONTROL) (06) - POWER TRAIN
23
24
9
4
2
10
14
2
23
28
7
20
17
22
28
9
10
12
12
3
1
21
5
26
19
18
25
6
11
11
27
16
9
8
10
13
15

Артикул

Название

Примечание

Количество

1

9628098

NUT,M8 x 1.25, Cl 10

3шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

If Used

2шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

2шт.

4

87564008

CLAMP BRACKET

1шт.

5

D67297

BLOCK

Isolation

2шт.

6

D68846

CLAMP

2шт.

7

87547068

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

8

87600630

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 10

3шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

11

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl. 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

87563995

HOSE,15.88 mm ID x 1835.00 mm

Pump Drain

1шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

18

87547060

HOSE

Motor To Pump Loop, 675 mm, 26.57 in. Length

1шт.

19

87547061

HOSE,19.05 mm ID x 1270.00 mm

Motor To Pump Loop

1шт.

20

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 21

4шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

22

87022175

HOSE,12.7mm ID x 600mm L

Case Drain

1шт.

23

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

24

87022174

HOSE ASSY.

Case Drain, 950 mm, 37.40 in. Length

1шт.

25

87547062

HOSE

Motor To Pump Loop, 646 mm, 25.43 in. Length

2шт.

26

87604075

ADAPTER

Connector With 1.0 mm Orifice

4шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 28

2шт.

28

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Выбрано товаров: 29
