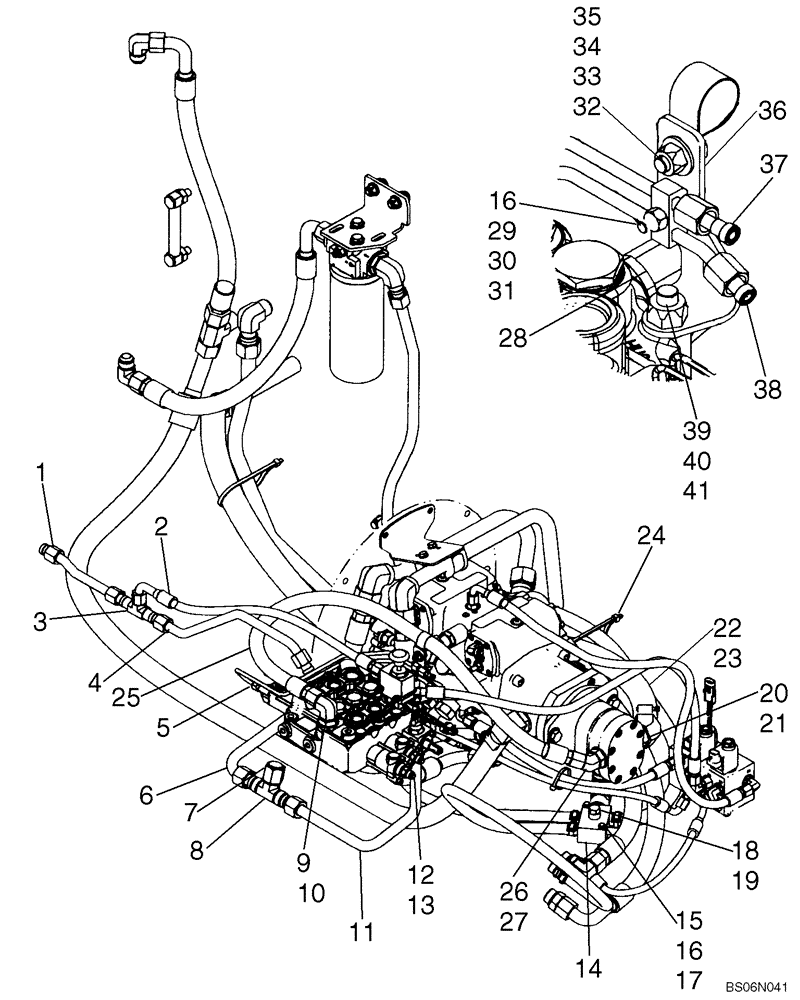

Запчасти Case IH 430 (06-06B) - HYDROSTATICS - MANIFOLD/CONTROL VALVE (430 WITH PILOT CONTROL) (06) - POWER TRAIN

1

87564000

HYD TUBE,15.875 mm OD x 219.7 mm L

Dump Valve Drain, 220mm (8 11/16 in.); If Used

1шт.

1

87629970

HYD TUBE

Dump Valve Drain, 212mm (8 5/16 in.); If Used

1шт.

2

87625890

HOSE

Dump Valve Supply; 559 mm, 22.00 in. Length; Replaces 87563993

1шт.

3

87644290

HYD CONNECTOR

Tee, Union 5/8 X 5/8 X 1/2 37 Fl; Replaces 87573372

1шт.

4

87563998

HYD TUBE,15.875 mm OD

Dump Valve Drain

1шт.

5

87575684

HYD CONNECTOR

Connector, Flareless

2шт.

6

87445138

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

7

219606

CAP,1-1/16" - 12 JIC

1шт.

8

15694

TEE,1 1/16"-12 37 Degree

1шт.

9

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 10

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87445137

HYD TUBE,19.05 mm OD x 306.7, 187.6 mm L

Valve To Filter

1шт.

12

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 13

2шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

14

87437351

MANIFOLD

1шт.

15

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

17

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

18

76349

PLUG,9/16" - 18 ORB

Incl. 19

3шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

20

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

87563972

HOSE,31.75 mm ID x 420.00 mm, SAE 100R13

Loader Pump Supply

1шт.

23

87039085

HOSE CLAMP,32mm - 54mm

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

25

87547070

HOSE,15.88mm ID x 1000mm L

Valve Supply

1шт.

26

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 27

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 29

4шт.

29

608089

CLAMP

1шт.

30

87030561

NUT,M6 x 1, Cl 8

1шт.

31

80120101

BOLT

1шт.

32

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

33

9628098

NUT,M8 x 1.25, Cl 10

3шт.

34

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

35

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

36

87678506

BRACKET

Replaces 87564009

1шт.

37

87563969

HYD TUBE,6.35 mm OD

1шт.

38

87563968

HYD TUBE,6.35 mm OD

1шт.

39

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

40

86512554

NUT,M10 x 1.5, Cl 10

3шт.

41

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

7шт.
