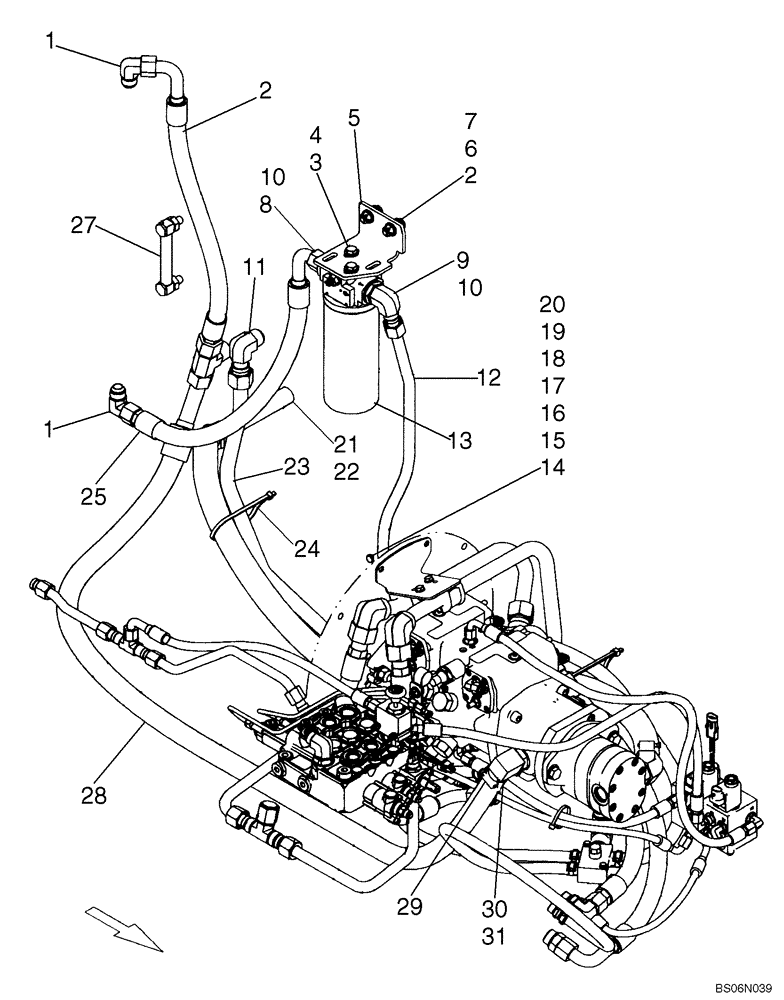

Запчасти Case IH 430 (06-06) - HYDROSTATICS - PUMP TO COOLER (430 WITH PILOT CONTROL) (06) - POWER TRAIN

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

To Oil Cooler

2шт.

2

87453235

HOSE ASSY.

Oil Cooler, 650 mm, 25.59 in. Length

1шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

7шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

87020901

BRACKET, SUPPORTING

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

7

86512554

NUT,M10 x 1.5, Cl 10

3шт.

8

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl. 10; If Used

1шт.

9

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 10

1-2шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

12

87446084

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

13

87430661

FILTER

Hydrostatic Filter; See Fig. 06-09

1шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

87042897

SPACER

1шт.

17

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

18

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

21

H151399

FILTER STRAINER

1шт.

22

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

23

87458893

HYD TUBE,25.4 mm OD

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

25

87446945

HOSE ASSY.

700 mm, 27.56 in. Length; If Used

1шт.

25a

87641914

HOSE

Oil Cooler Hose; 800 mm (31.5 in); If Used

1шт.

26

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

27

87374752

GAUGE

Liquid Level

1шт.

28

87563971

HOSE

1859 mm, 73.19 in. Length

1шт.

29

87301358

HOSE CLAMP,1.00/1.875 HD Worm

1шт.

30

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
