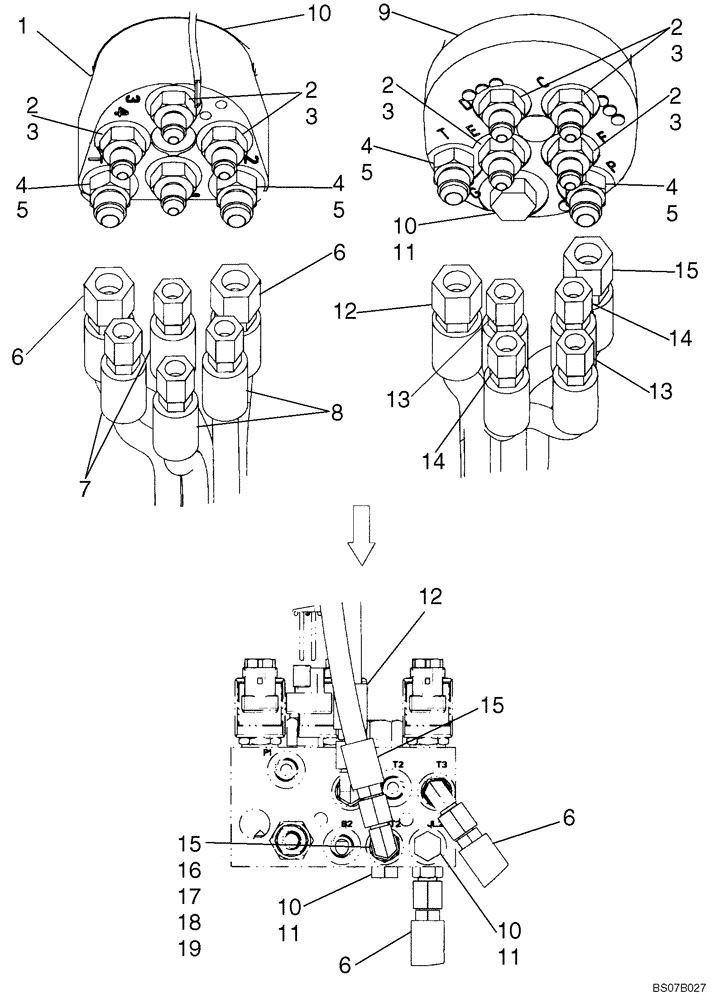

Запчасти Case IH 430 (06-05B) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (430 WITH PILOT CONTROLS) (06) - POWER TRAIN

87575602

SERVICE KIT

Kit, ISO Pattern Control; Incl. 1 - 15

1шт.

1

87600623

VALVE

Joystick Valve, ISO Pattern RH

1шт.

2

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 3

8шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

4шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

6

87604068

HOSE

Joystick Supply, 1240 mm, 48.82 in. Length

2шт.

7

87604062

HOSE,6.35mm ID x 590mm L

590 mm, 23.23 in. Length

2шт.

8

87604069

HOSE,6.35mm ID x 490mm L

490 mm, 19.29 in. Length

2шт.

9

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern LH

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

12

87604066

HOSE

Joystick Drain, 660 mm, 26.00 in. Length

1шт.

13

87604072

HOSE

Hose, 800 mm, 31.50 in. Length

2шт.

14

87604070

HOSE

Hose, 920 mm, 36.22 in. Length

2шт.

15

87573371

ADAPTER

Connector, .38 OD Male X .38 OD Female; Incl. 16,17

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
