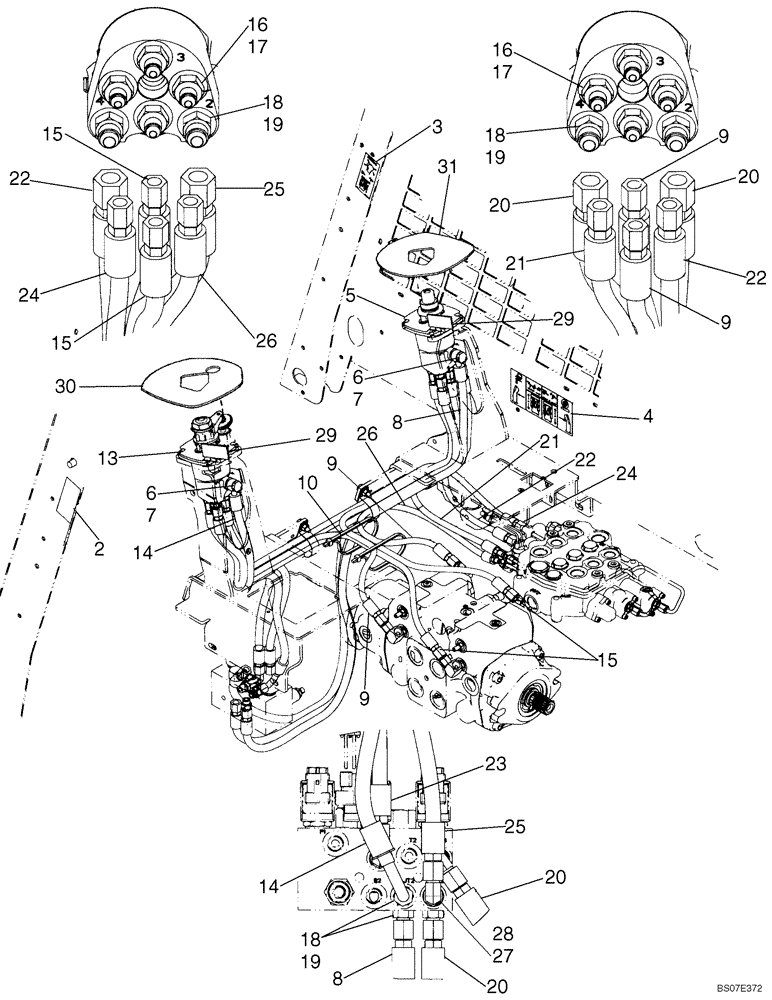

Запчасти Case IH 430 (06-05) - JOYSTICK CONTROL PLUMBING - H PATTERN (430 WITH PILOT CONTROL) (06) - POWER TRAIN

1

87575601

SERVICE KIT

H Pattern Controls; Incl. 2 - 28

1шт.

2

87573275

DECAL

H Pattern, Left Hand

1шт.

3

87573276

DECAL

H Pattern, Right Hand

1шт.

4

87438592

DECAL

Control Identification; If Used

1шт.

5

87357241

HYDRAULIC VALVE

H Pattern Joystick Valve, Right Hand; See Fig 06-05D;If Used

1шт.

5

87740389

HYDRAULIC VALVE

H Pattern Joystick Valve, Right Hand; See Fig 06-05D

1шт.

4

87644222

DECAL

Control Identification; If Used

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

7

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

No Longer Used, Order 87622364

2шт.

7

87622364

BOLT

Banjo Bolt, 10 Banjo 3/4 Hole

2шт.

8

87575289

HYDRAULIC HOSE,9.52 mm ID x 1260.00 mm

Joystick Supply

1шт.

9

87604064

HOSE

Pilot; 850 mm, 33.46 in. Length

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

13

87357240

HYDRAULIC VALVE

H Pattern Joystick Valve, Left Hand; See Fig 06-05C; If Used

1шт.

13

87740388

HYDRAULIC VALVE

H Pattern Joystick Valve, Left Hand; See Fig 06-05C

1шт.

14

87575290

HOSE,9.53mm ID x 776mm L

Joystick Supply; 776 mm, 30.55 in. Length

1шт.

15

87604065

HOSE

Pilot; 955 mm, 37.60 in. Length

2шт.

16

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 17

8шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

18

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 19

6шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

20

87604068

HOSE

Joystick Supply Or Drain; 1240 mm, 48.82 in. Length

2шт.

21

87604062

HOSE,6.35mm ID x 590mm L

Pilot; 590 mm, 23.23 in. Length

1шт.

22

87604069

HOSE,6.35mm ID x 490mm L

Pilot; 490 mm, 19.29 in. Length

1шт.

23

87604066

HOSE

Joystick Drain; 660 mm, 26.00 in. Length

1шт.

24

87604061

HOSE,6.35mm ID x 1055mm L

Pilot; 1055 mm, 41.54 in. Length

1шт.

25

87604067

HOSE

Joystick Supply; 730 mm, 28.74 in. Length

1шт.

26

87604063

HOSE,6.35mm ID x 930mm L

Pilot; 930 mm, 36.61 in. Length

1шт.

27

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 28

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

87621155

SEAL

2шт.

31

87618659

FOAM INSULATION

Seal, RH

1шт.

30

87618658

FOAM INSULATION

Seal, LH

1шт.
