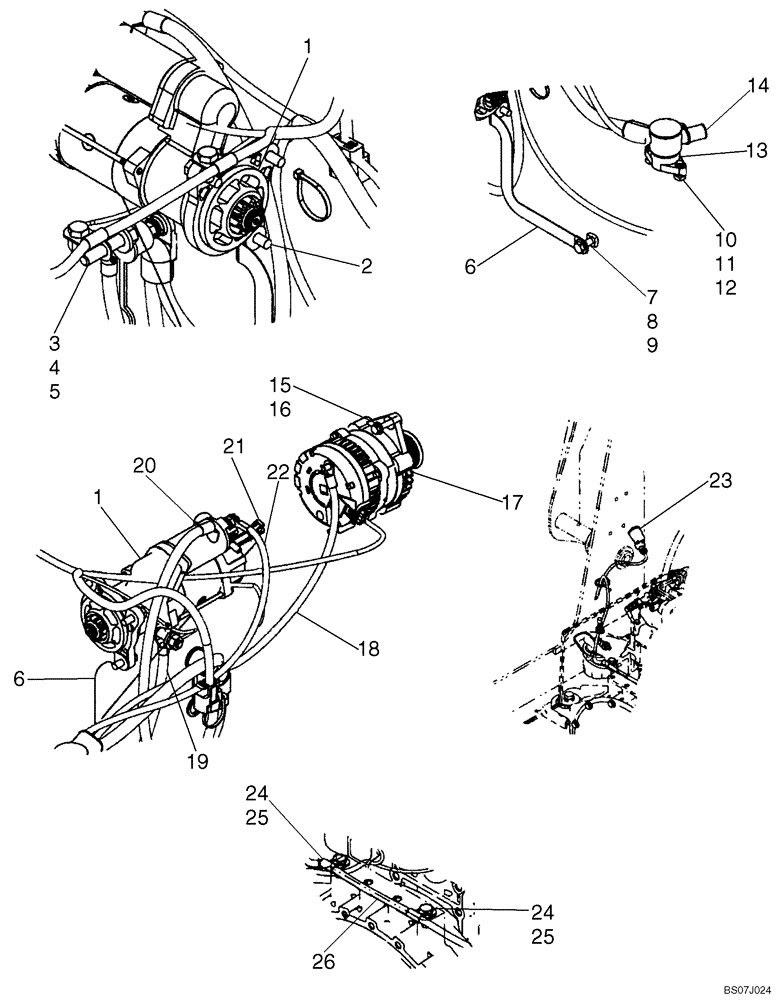

Запчасти Case IH 430 (04-05) - ENGINE - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

87040161

STARTER MOTOR,12V, 2.7kW

Denso Starter; If Used; Incl Jumper Harness 87040162

1шт.

1

87040161R

REMAN-STARTER,12V, 2.7kW

Denso Starter, Remanufactured

1шт.

1

87040161C

CORE-STARTER,12V, 2.7kW

Return Number, Denso Starter, Core

1шт.

1

87366159

STARTING MOTOR

Delco Remy Starter

1шт.

1

87366159R

REMAN-STARTER

Remanufactured Starter

1шт.

1

87366159C

CORE-STARTER

Return Number

1шт.

1

87638510

STARTER MOTOR,12V, 2.7kW

Engine, 3.0KW PA90S

1шт.

87638510R

REMAN-STARTER,12V, 2.7kW

430 Series 3, ASN N7M479683 (1/08)

1шт.

87638510C

Return Number

CORE-STARTER,12V, 2.7kW

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

3

9706685

NUT,M12 x 1.75, Cl 8

1шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

5

87458961

STUD

1шт.

6

87648689

GROUND STRAP

1шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

9

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

1шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

13

87630124

POST

Power Distribution Stud

1шт.

14

87630125

BOOT

Battery Cable Boot

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

1шт.

16

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

If Used

1шт.

17

87038475

ALTERNATOR

Replaces 87042118

1шт.

17

84230294R

REMAN-ALTERNATOR

430 Series 3, ASN N7M479683

1шт.

17

84230294C

Return Number

CORE-ALTERNATOR

1шт.

18

87620458

CABLE

Harness, Starter To Alternator/Start Relay

1шт.

19

87713283

NEG BATTERY CABLE

Battery Cable, Negative, NA 1645mm (64 3/4 in.)

1шт.

19

338030A1

CABLE ASSY.

Battery Cable, Negative, Europe 1524mm (60 in.)

1шт.

20

87052670

CABLE ASSY.

Battery Cable, Positive

1шт.

21

87053083

HARNESS

Harness, Starter Jumper

1шт.

22

87652238

CABLE

Starter To Power Distribution Block

1шт.

23

87013666

SWITCH,Air Filter Restriction

Switch, Air Restriction

1шт.

24

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

25

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Clamp, Insulated 11.1mm X M12 Bolt; If Used

2шт.

25

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

26

87620452

HARNESS

Harness, F5C Engine; If Used

1шт.

26

87720457

HARNESS

Harness, F5C Engine

1шт.
