Запчасти Case IH 430 (04-01) - ENGINE, ALTERNATOR MOUNTING (87530652) (04) - ELECTRICAL SYSTEMS

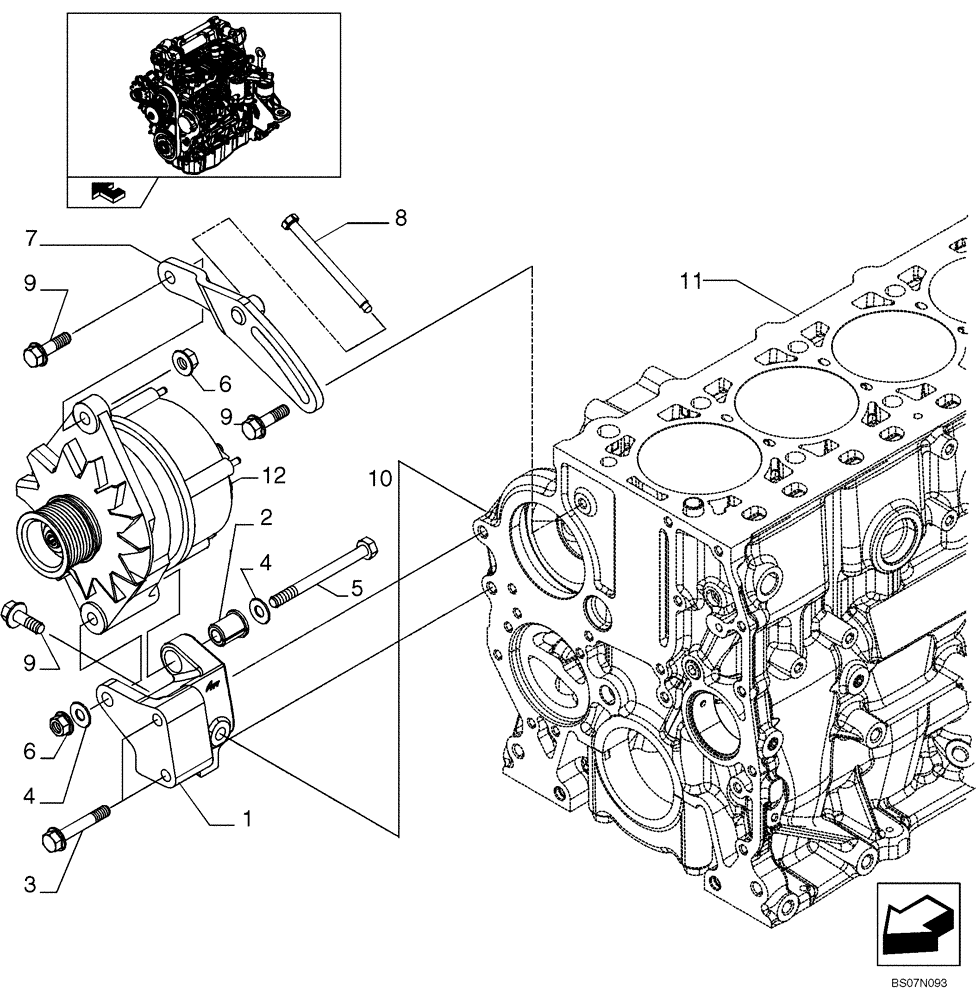

Схема запчастей Case IH 430 - (04-01) - ENGINE, ALTERNATOR MOUNTING (87530652) (04) - ELECTRICAL SYSTEMS
9
2
1
3
6
5
4
0.04.0
0.40.0/ a
4
10
7
home
9
8
6
9

Артикул

Название

Примечание

Количество

1

504276997

BRACKET, SUPPORTING

1шт.

2

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

3

16587824

BOLT,Hex, M10 x 1.5 x 60mm

M10 x 1.5 x 60

2шт.

4

14489004

WASHER

D. 10 x 21 x 2 mm

2шт.

5

16609024

BOLT

1шт.

6

17044825

NUT,Hex, M10 x 1.25

M10

2шт.

7

504243953

BELT TENSIONER

1шт.

8

504010032

SCREW

1шт.

9

16587325

SCREW,Hex, M10 x 35mm

M10 x 35

3шт.

10

87038475

ALTERNATOR

12V, 95 Amp; Service Breakdown Not Available At Time Of Printing

1шт.

10

87038475R

REMAN-ALTERNATOR

12V, 95 Amp

1шт.

10

87038475C

CORE-ALTERNATOR

Return Number

1шт.

10

84230294R

REMAN-ALTERNATOR

430 Series 3, ASN N7M479683

1шт.

10

84230294C

Return Number

CORE-ALTERNATOR

1шт.

11

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

Выбрано товаров: 15
