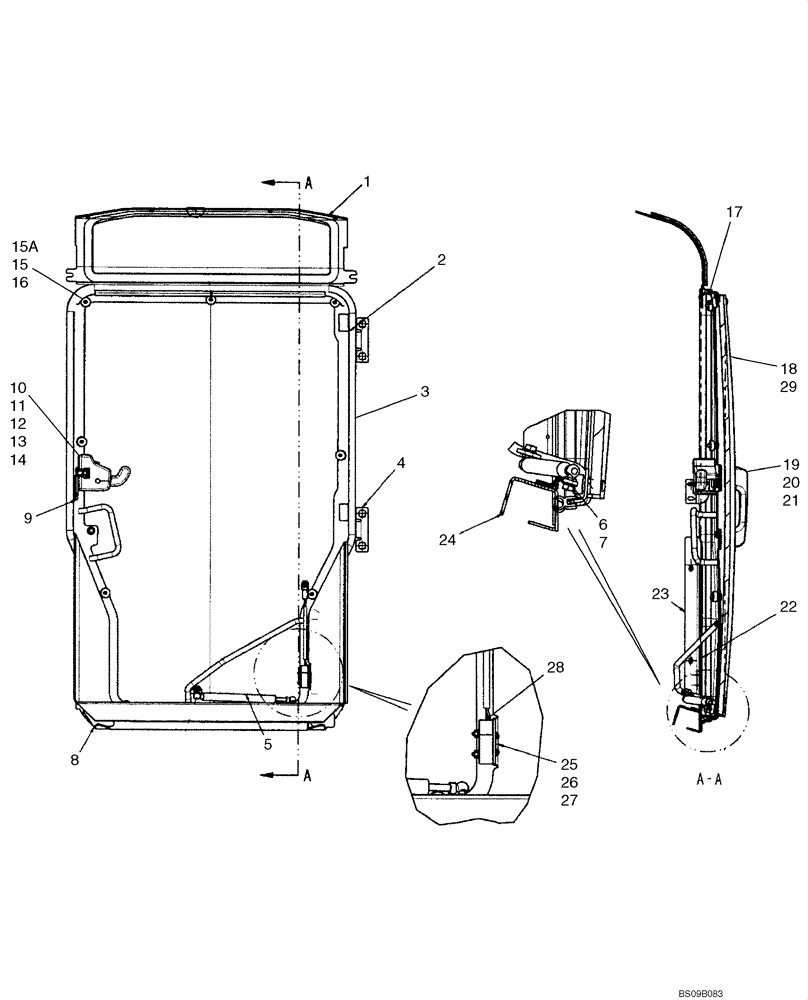

Запчасти Case IH 430 (09-32) - DEMOLITION DOOR (09) - CHASSIS

1

87627521

WINDOW

Visor; See Fig 09-27

1шт.

2

87599753

SPACER,10.21mm ID x 15.88mm OD x 2.03mm L

Bushing

2шт.

3

NSS

NOT SOLD SEPARAT

Frame, Demolition Door

1шт.

3

NSS

NOT SOLD SEPARAT

Demo Door Assy Sub; See Fig 09-32A

1шт.

4

87717283

HINGE

Door Hinge

2шт.

5

87642437

GAS STRUT

Gas Spring

1шт.

254307A1

CLIP

Used to hold on Gas Strut; Not Shown

1шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

7

87581669

BALL STUD,M8 x 29.50mm L

Ball Stud

1шт.

8

87717210

BRACKET

Bracket, Lower Door LH, Black

1шт.

9

87642394

STRIKER PLATE

Stiker Latch

1шт.

10

87678399

LATCH

Rotary Latch

1шт.

11

86512463

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

Screw, M6 X 25

3шт.

12

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

If Used

3шт.

13

87698769

BOLT,Hex, M6 x 35mm, Cl 8.8

Bolt, M6 X 35; If Used

3шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

87756304

KNOB

Quick Release Knob; If Used

9шт.

15a

87756304

KNOB

9шт.

16

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

If Used

9шт.

17

87624641

SEAL,3276mm L

Bulb Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Polycarbonate Door

1шт.

18

87640046

SERVICE KIT

Kit, Demolition Door; Incl 15, 16, 18, 29; If Used

1шт.

18

84191318

KIT

Kit, Demolition Door; Incl 15, 18, 29

1шт.

19

60-7083T1

HANDLE

Door Handle; If Used

1шт.

19a

1964831C2

IGNITION KEY

Ignnition Switch

1шт.

20

87723784

SEAL

Handle Seal, Lower; If Used

2шт.

21

87723771

SEAL

Handle Seal, Upper; If Used

2шт.

22

87717215

BRACKET

Lower Door Bracket, RH, Black

1шт.

23

87669915

PLATE

Spacer

1шт.

24

87722347

PLATE

Threshold, Black

1шт.

25

87680073

U-BOLT

U Bolt, Switch Mounting; If Used

1шт.

25

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

6-32 X 1-3/8 Pan Hd

2шт.

26

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

Washer, .156 X .375 X .049 in; If Used

2шт.

26

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

Washer, .156 X .375 X .049 in; If Used

4шт.

27

87622767

NUT

Nut, #6-32; If Used

2шт.

28

280859

NUT,Keps, #6-32

If Used

2шт.

28

87051110

DOOR SWITCH

Seat Bar Switch

1шт.

29

87728964

FOAM INSULATION

Foam Gasket; If Used

1шт.

29

87481886

FOAM INSULATION

Foam Gasket

1шт.
