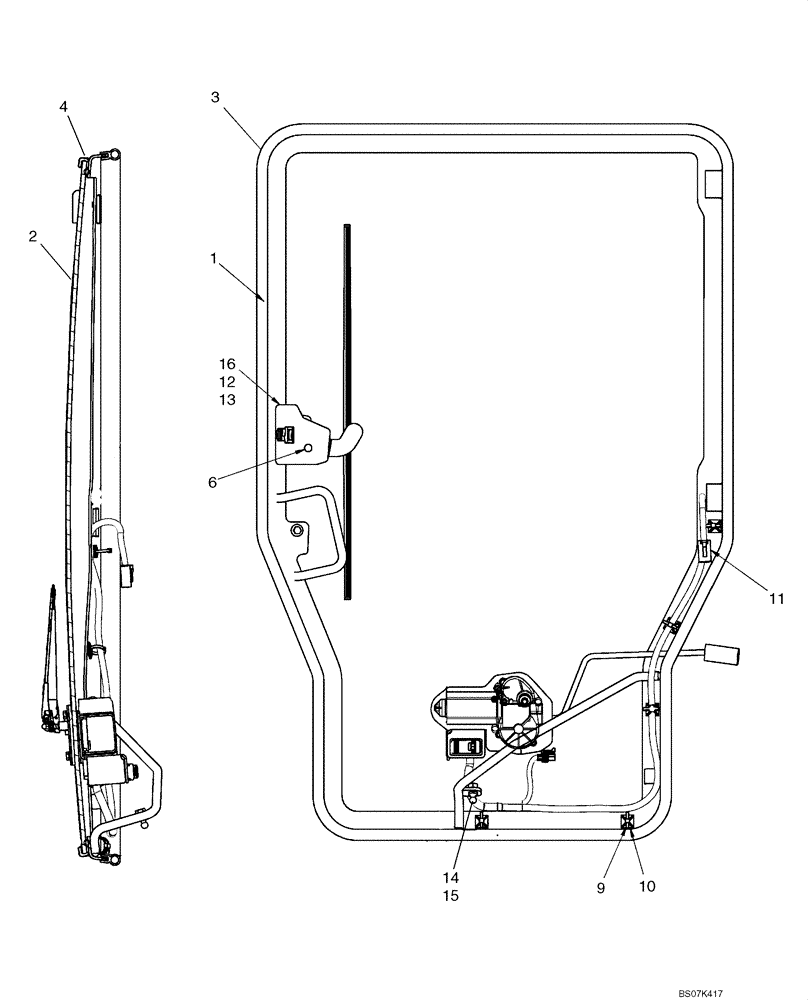

Запчасти Case IH 430 (09-26) - CAB DOOR (09) - CHASSIS

1

87627520

DOOR

Door With Glass; Incl. 2, 3, 5 & 6

1шт.

87717689

SERVICE KIT

Kit, Front Door Glass; Incl 2, 4

1шт.

2

87722341

CAB GLASS ASSY

Front Door Glass

1шт.

3

NSS

NOT SOLD SEPARAT

Door, Black

1шт.

4

87715052

SEAL,3204mm L

Trim, Glass Seal

1шт.

5

87660180

ADHESIVE

Window Adhesive

1шт.

6

87600221

SPACER

Glue Spacer; Not Illustrated

8шт.

7

87723784

SEAL

Handle Mounting Seal, Lower; See Fig 09-29 For Illustration ; Replaces 87642453

1-2шт.

8

87723771

SEAL

Handle Mounting Seal, Upper; See Fig 09-29 For Illustration ; Replaces 87642449

1-2шт.

9

87642915

CABLE TIE,198mm L

CABLE STRAP If Used

5шт.

10

87642914

BASE

Base, Cable Tie; If Used

5шт.

10a

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated; If Used

5шт.

11

87718119

HARNESS

Door Harness; If Used

1шт.

11

87750584

HARNESS

Door Harness; If Used

1шт.

12

86512463

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

Screw, M6 X 25 4.8 ZND

3шт.

13

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

If Used

1шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

If Used

1шт.

15

86634307

STUD

Ball Stud; If Used

1шт.

15

87581669

BALL STUD,M8 x 29.50mm L

Ball Stud; If Used

1шт.

16

87678399

LATCH

Rotary Latch; Includes Latch And Cover

1шт.

17

87624641

SEAL,3276mm L

Bulb Seal

1шт.
