Запчасти Case IH 430 (02-10) - ENGINE ASSY (87530652) (02) - ENGINE

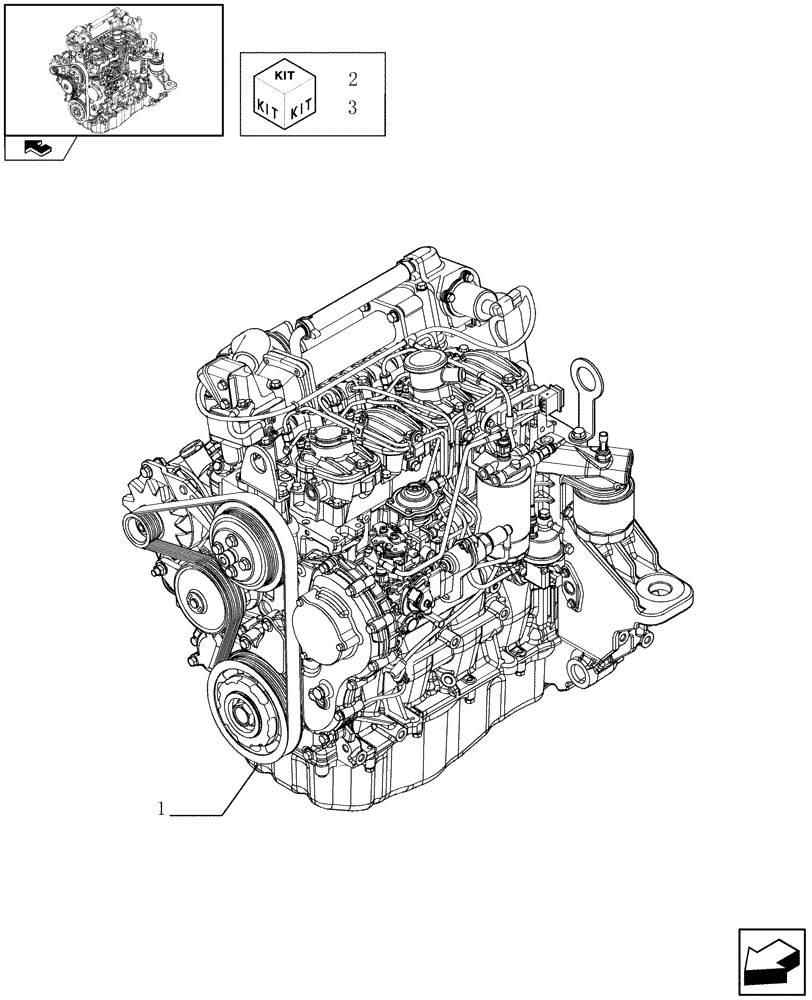

Схема запчастей Case IH 430 - (02-10) - ENGINE ASSY (87530652) (02) - ENGINE
1
3
2
home

Артикул

Название

Примечание

Количество

1

87530652

ENGINE

61 kW (81.8 HP) 296 mm Fan Center; Incl Figures 02-10 - 02-41, 03-03 - 03-10, 04-02; Order Alternator (Figure 04-01A), Belt (Figure 02-26) Shown Separately.

1шт.

1

47456817R

430 Series 3 ASN N7M479683 w/F5C 4 Cyl. Tier 3 Engine (1/08-), Reman Basic For New Production Engine P/N 87530652

REMAN-BASIC ENGINE

1шт.

1

47456817C

Return Number

CORE-BASIC ENGINE

1шт.

1

87530652ER

REMAN-REPLACEMENT EN

430 Series 3, ASN N7M479683, w/F5C 4 Cyl., Tier 3

1шт.

1

87530652EPAC

Return Number

CORE-EPA ENGINE

1шт.

1

87530652R

REMAN-REPLACEMENT EN

430 Series 3, ASN N7M479683, w/F5C 4 Cyl., Tier 3

1шт.

1

87530652C

CORE-ENGINE

Return Number

1шт.

1

8099018

SHORT ENGINE

1шт.

1

8099018ER

REMAN-SHORT ENGINE

430 Series 3, ASN N7M479683, w/F5C 4 Cyl., Tier 3

1шт.

1

8099018EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

8099018R

REMAN-SHORT ENGINE

430 Series 3 ASN N7M479683 w/F5C 4 Cyl., Tier 3

1шт.

1

8099018C

CORE-SHORT ENGINE

Return Number

1шт.

2

8097550

ENGINE GASKET KIT

Kit, Engine Overhaul

1шт.

3

8097551

KIT, ENGINE TOP GASK

Kit, Engine Top Gaskets

1шт.

Выбрано товаров: 14
